2.5L SOHC U5/Low Emission

DTC P0107 MANIFOLD ABSOLUTE PRESSURE/BAROMETRIC PRESSURE CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode and Inspection Mode.

Wiring Diagram:

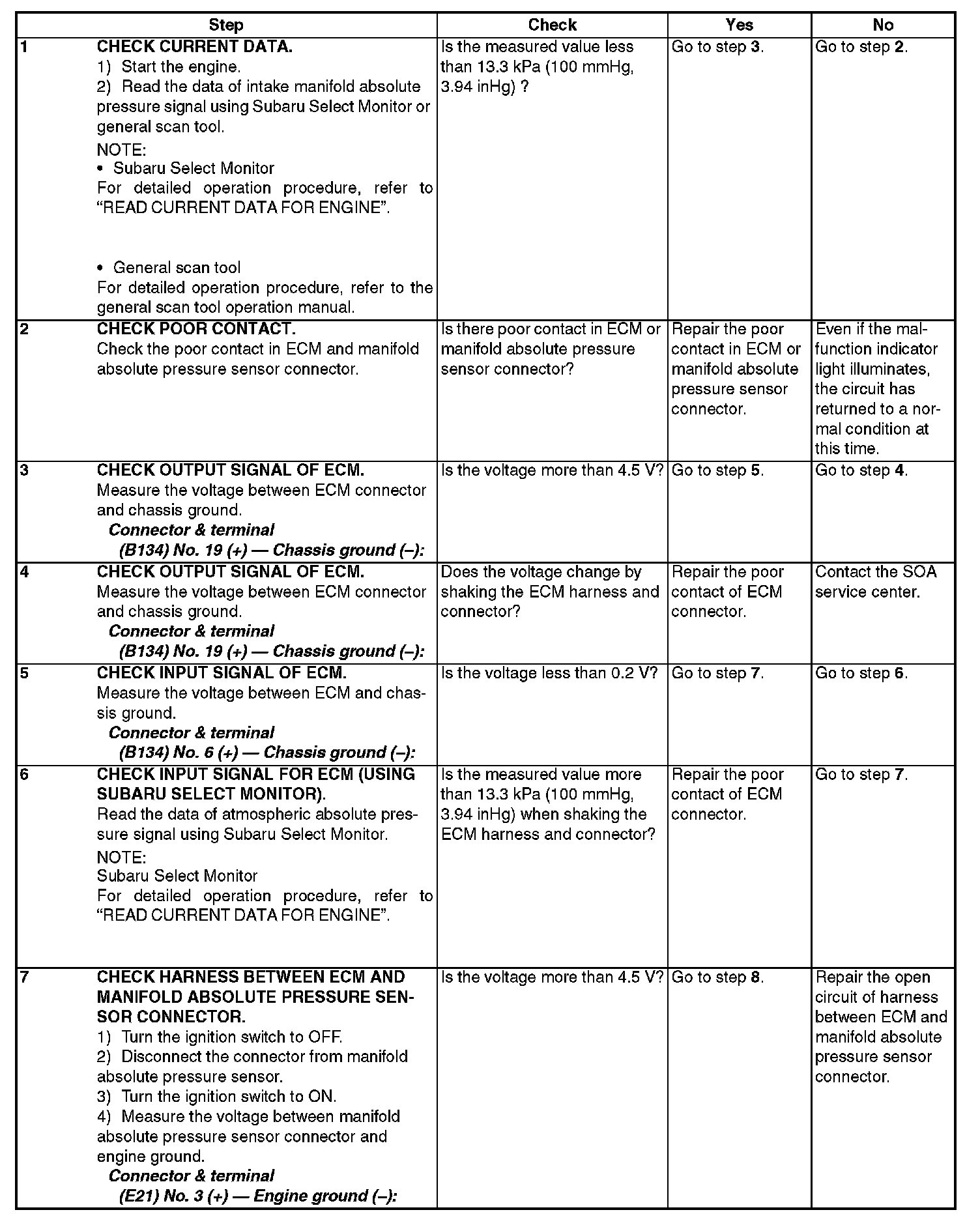

Step 1 - 7:

Step 8 - 9:
