2.5L SOHC

DTC P0037 HO2S HEATER CONTROL CIRCUIT LOW (BANK 1 SENSOR 2)

DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode and Inspection Mode.

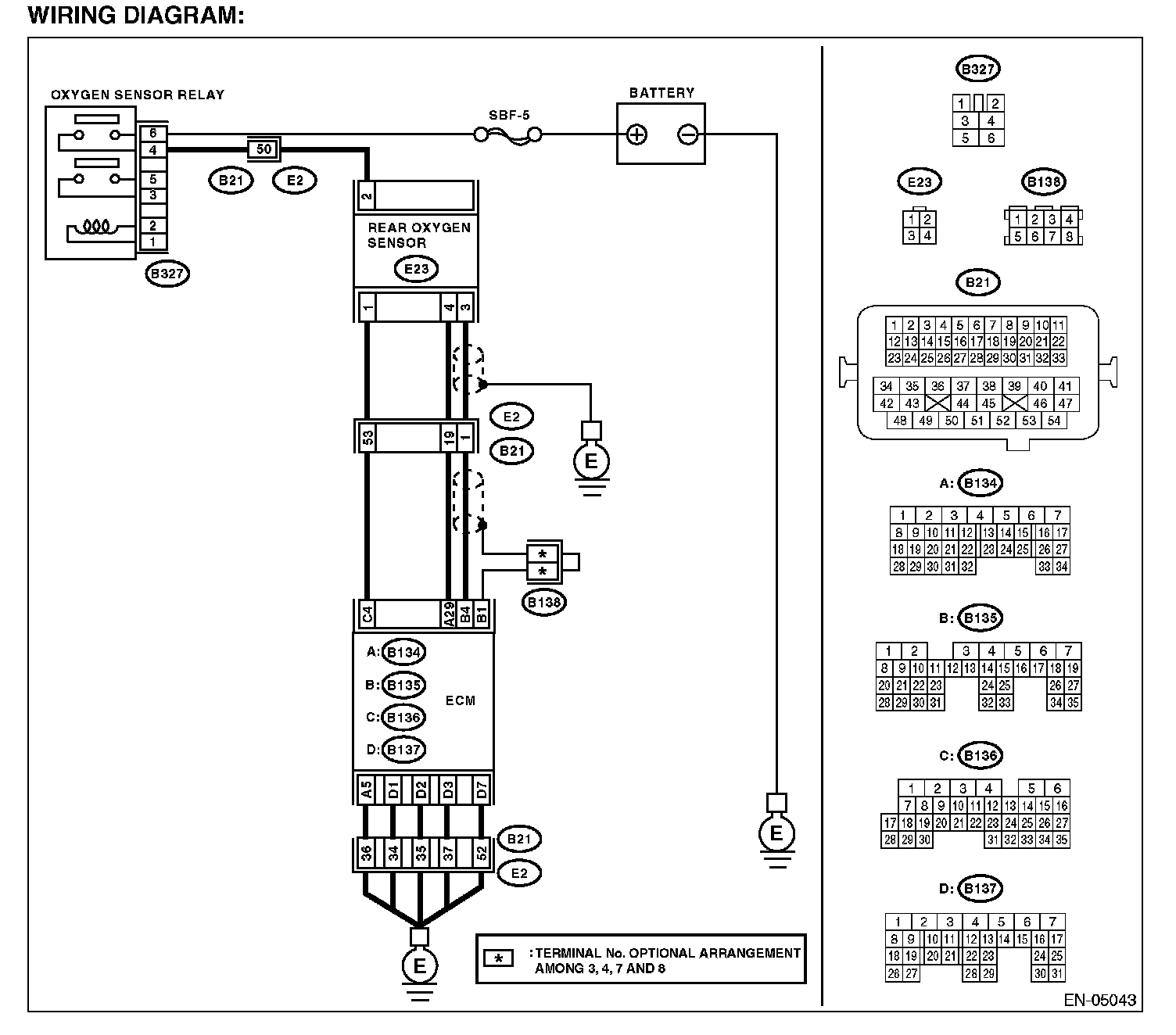

Wiring Diagram:

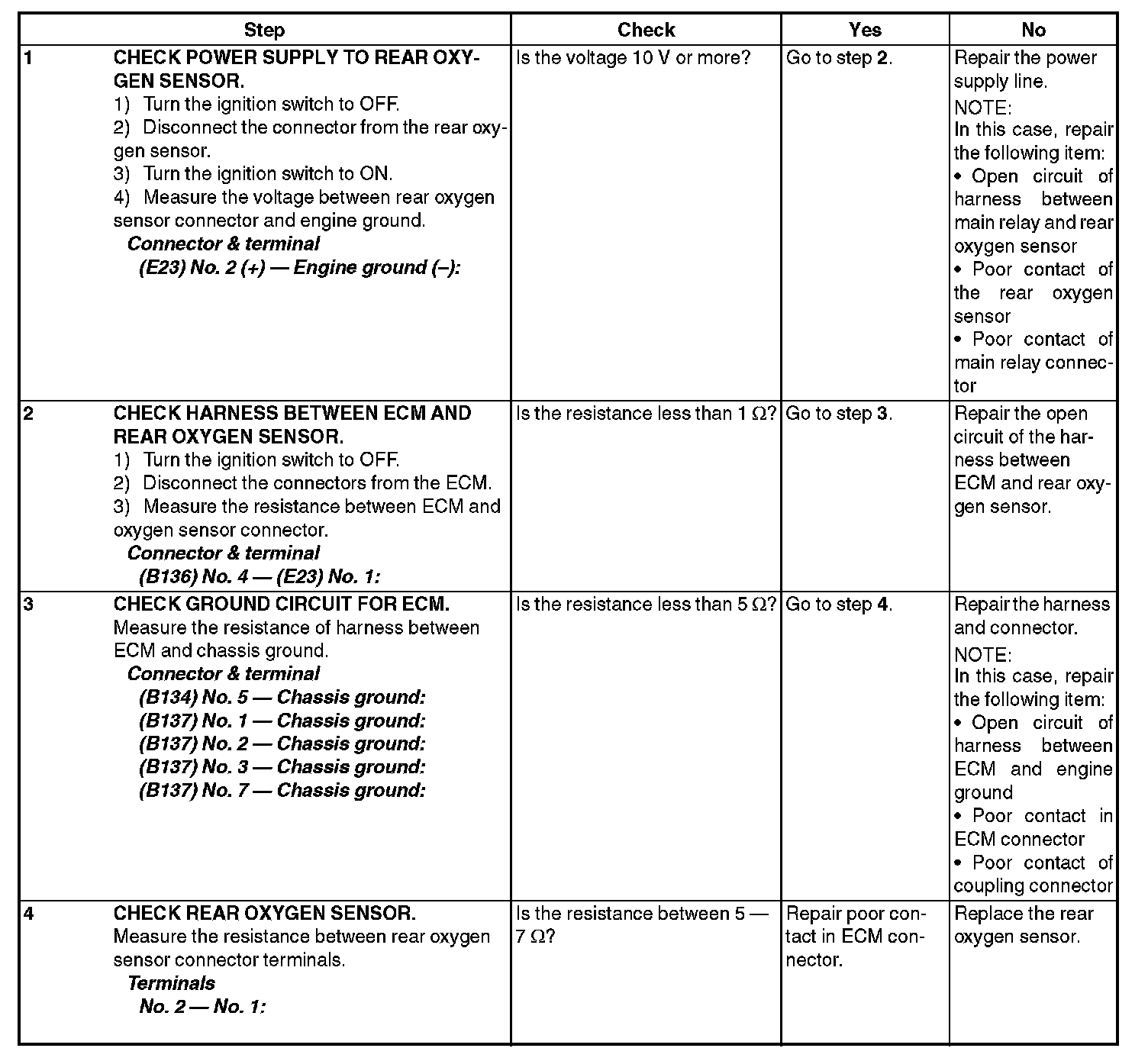

Step 1-4:
