2.5L SOHC U5/Low Emission

DTC P1443 VENT CONTROL SOLENOID VALVE FUNCTION PROBLEM

1. OUTLINE OF DIAGNOSIS
Detect the abnormal function (stuck closed) of the drain valve.
Judge as NG when fuel tank pressure is low.

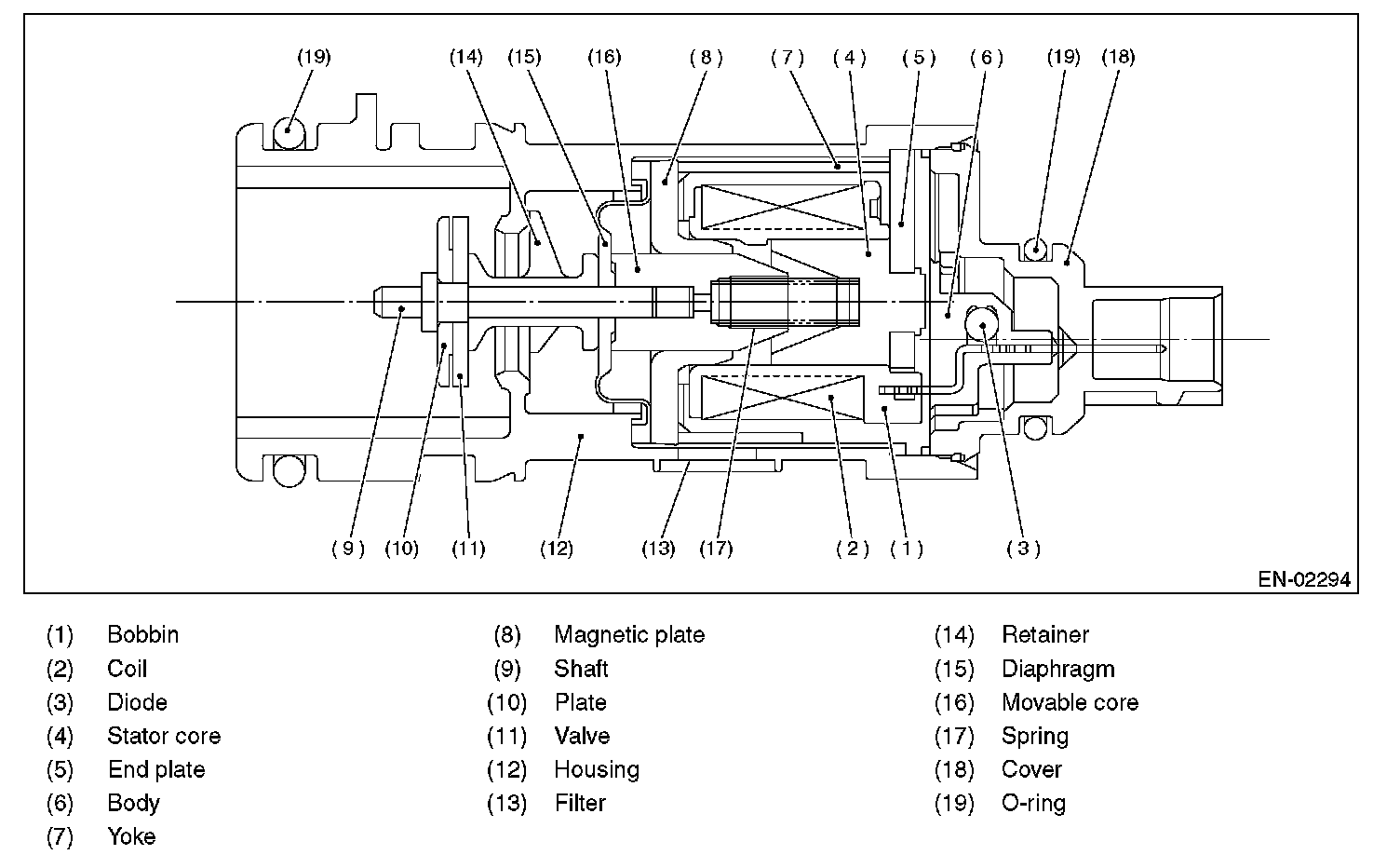

2. COMPONENT DESCRIPTION




3. ENABLE CONDITION

4. GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.

5. DIAGNOSTIC METHOD




Abnormality Judgment
Judge as NG when the continuous time of completing the malfunction criteria below becomes more than 3 seconds.




Normality Judgment
Judge as OK and clear the NG when the malfunction criteria below are met.

6. DTC CLEAR CONDITION
- When the OK idling cycle is completed 40 times in a row
- When "Clear Memory" is performed

7. MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle is completed 3 times in a row
- When "Clear Memory" is performed

8. FAIL SAFE
Pressure control solenoid valve control: Open the pressure control solenoid valve.

9. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
