3. Crankshaft Position, Camshaft Position And Knock Sensors
WARNING:
This page is about a different variant/trim than selected.

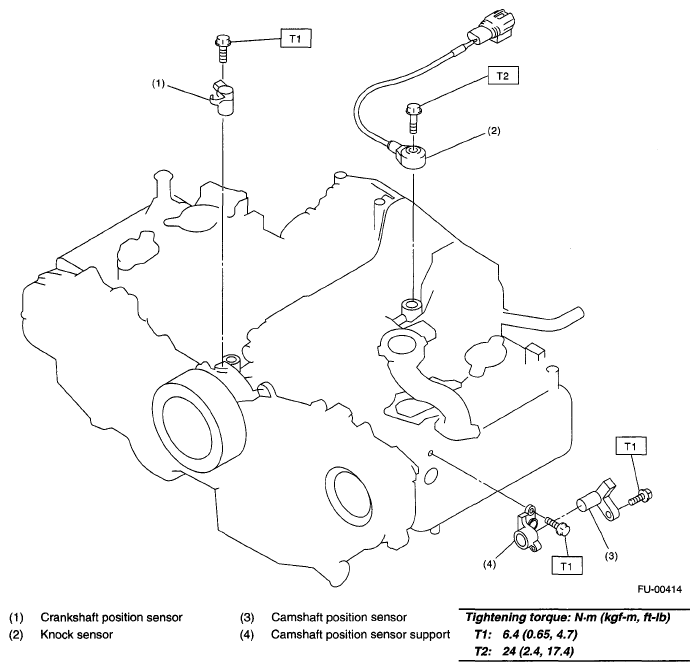

Fig 1: Crankshaft Position, Camshaft Position And Knock Sensors With Torque Specifications
