Check Sport Shift Indicator Light

WARNING: This page is about a different variant/trim than selected.

DIAGNOSIS:

Output signal circuit of SPORT shift indicator light is open or shorted.

TROUBLE SYMPTOM:

WIRING DIAGRAM:

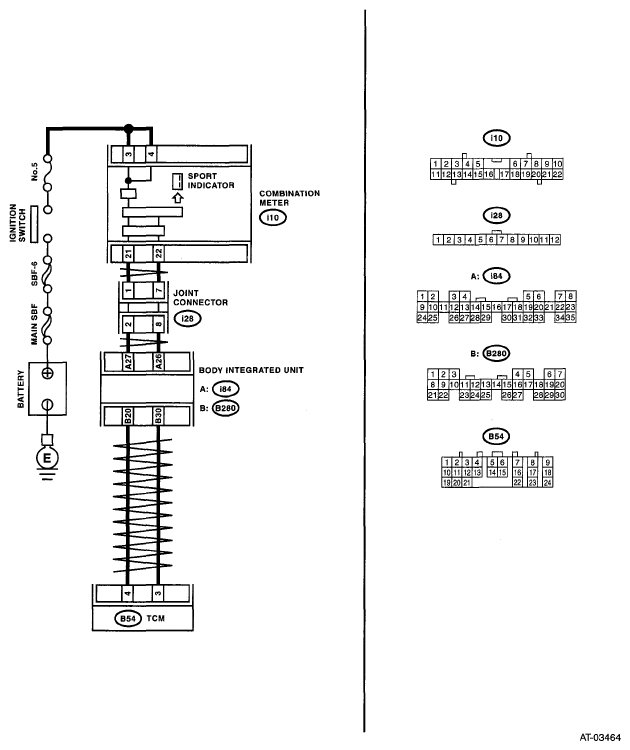

Fig 1: Sport Shift Indicator Light - Wiring Diagram

DIAGNOSTIC PROCEDURE

Step	Check	Yes	No
1 CHECK BODY INTEGRATED UNIT. Check DTC of body integrated unit.	Is DTC of AT CAN communication circuit displayed?	Perform the diagnosis according to DTC.	Go to step 2.
2 CHECK TCM. Check DTC of TCM.	Is DTC of AT CAN communication circuit displayed?	Perform the diagnosis according to DTC.	Go to step 3.
3 CHECK TCM. Turn the ignition switch to OFF. Connect the Subaru Select Monitor to the data link connector. Turn the ignition switch to ON. (engine OFF) Turn the Subaru Select Monitor switch to ON. Shift the select lever to manual mode side, and then shift down the select lever. Read the indicator.	Is gear position 1 and "x" displayed?	Go to step 4.	Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . >
4 CHECK TCM. Shift up the select lever. Read the indicator.	Is the gear position 2, and is "x" displayed?	Go to step 5.	Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . >
5 CHECK BODY INTEGRATED UNIT. Read the data of gear position using Subaru Select Monitor.	Is SPORT shift gear position 2?	Go to step 6.	Check the body integrated unit. < Ref. to BODY INTEGRATED UNIT . >
6 CHECK COMBINATION METER.	Is the SPORT shift indicator OK?	Refer to "Symptom Related Diagnostic". < Ref. to GENERAL DIAGNOSTIC TABLE . >	Replace the combination meter assembly. < Ref. to COMBINATION METER . >
