Check Buzzer

WARNING: This page is about a different variant/trim than selected.

DIAGNOSIS:

Output signal circuit of buzzer is open or shorted.

TROUBLE SYMPTOM:

Buzzer remains beeping.

WIRING DIAGRAM:

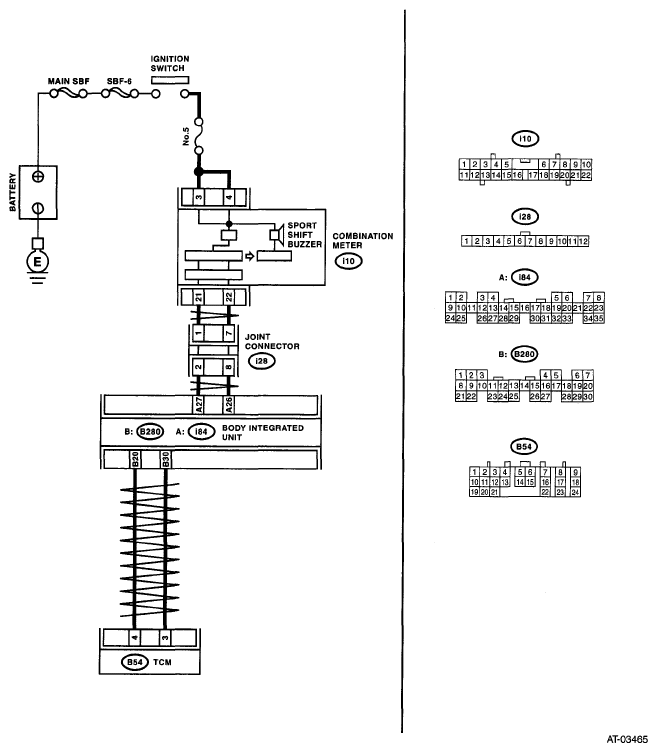

Fig 1: Buzzer - Wiring Diagram

G05019854

COMMUNICATION CHART

Step	Check	Yes	No
1 CHECK BODY INTEGRATED UNIT. Check DTC of body integrated unit.	Is DTC of CAN communication displayed?	Perform the diagnosis according to DTC.	Go to step 2.
2 CHECK TCM. Check DTC of TCM.	Is DTC of CAN communication displayed?	Perform the diagnosis according to DTC.	Go to step 3.
3 CHECK BUZZER STOP. Disconnect the connector (B54).	Does the buzzer stop?	Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . >	Go to step 4.
4 CHECK BODY INTEGRATED UNIT. Turn the ignition switch to OFF. Connect the Subaru Select Monitor to the data link connector. Turn the ignition switch to ON. (engine OFF) Turn the Subaru Select Monitor switch to ON. Read the data of SPORT shift buzzer using Subaru Select Monitor.	Is the SPORT shift buzzer display "ON"?	Replace the body integrated unit. < Ref. to BODY INTEGRATED UNIT . >	Go to step 5.
5 CHECK COMBINATION METER.	Is the buzzer OK?	Refer to "Symptom Related Diagnostic". < Ref. to GENERAL DIAGNOSTIC TABLE . >	Replace the combination meter assembly. < Ref. to COMBINATION METER . >
