DTC P0957 Backup Light Relay Circuit Low
WARNING: This page is about a different variant/trim than selected.
DTC DETECTING CONDITION:
Short circuit of back-up light relay output circuit
TROUBLE SYMPTOM:
Back-up light does not illuminate in "R" range.

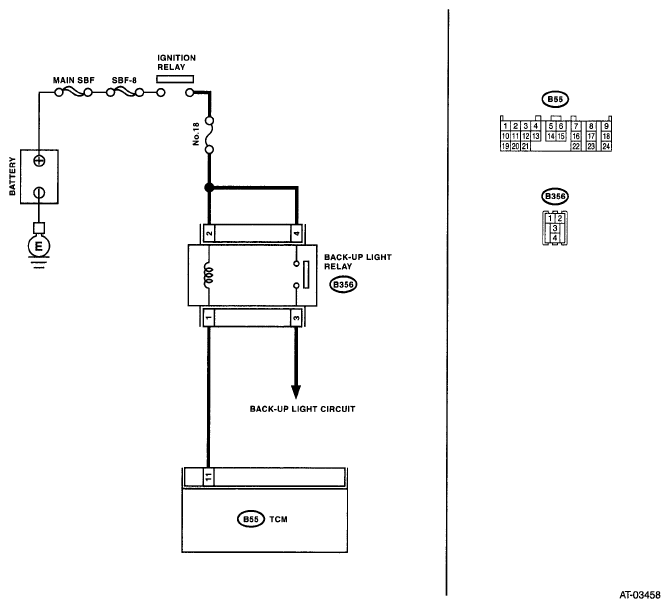

WIRING DIAGRAM:
DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
| 1 CHECK DTC OF TCM. | Is DTC of Transmission Range Sensor Circuit (PRNDL Input) detected? | Perform the diagnosis according to DTC. | Go to step 2. |
2 CHECK HARNESS CONNECTOR BETWEEN TCM AND BACK-UP LIGHT RELAY.
|
Is the resistance less than 1 Ω? | Go to step 3. | Repair the open circuit of harness between TCM and transmission connector, or poor contact of connector. |
| 3 CHECK HARNESS CONNECTOR BETWEEN TCM AND TRANSMISSION. Measure the resistance of harness between TCM connector and chassis ground. Connector & terminal (B55) No. 11 - Chassis ground: |
Is the resistance more than 1 MΩ? | Go to step 4. | Repair the short circuit of harness between TCM and transmission connector. |
4 CHECK TCM OUTPUT SIGNAL.
|
Is the voltage more than 10 V? | Go to step 5. | Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . > |
5 CHECK TCM OUTPUT SIGNAL.
|
Is the voltage 1.0 - 2.0 V? | Go to step 6. | Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . > |
| 6 CHECK INPUT VOLTAGE FOR BACK-UP LIGHT RELAY. Measure the voltage between back-up light relay and chassis ground. |
Is the voltage 10 - 13 V? | Replace the backup light relay. | Check open or short circuit of harness between fuse (No. 18) and backup light relay. |
