DTC P0773 Shift Solenoid "E" Electrical

WARNING: This page is about a different variant/trim than selected.

DTC DETECTING CONDITION:

Output signal circuit of low coast brake solenoid is open or shorted.

TROUBLE SYMPTOM:

Locked to 2nd gear.
Engine brake does not function at 1st or 2nd of manual mode.

WIRING DIAGRAM:

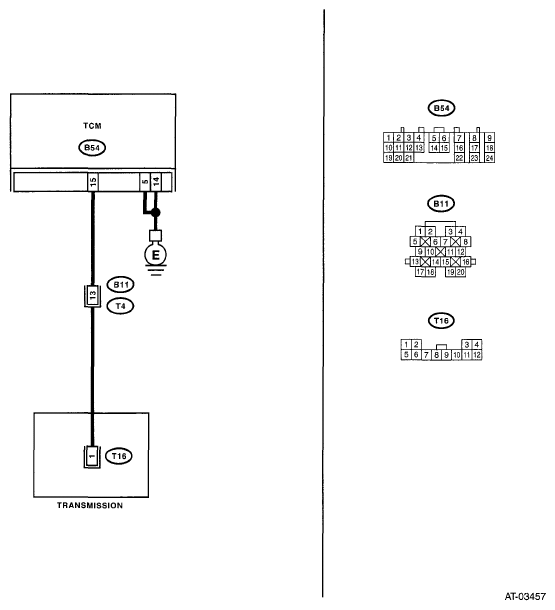

Fig 1: Output Signal - Wiring Diagram

G05019836

RESISTANCE CHART

Step	Check	Yes	No
1 CHECK DTC OF TCM.	Is DTC (P0802) of the PVIGN relay detected?	Perform the diagnosis according to DTC.	< Ref. to DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC) . >
2 CHECK HARNESS CONNECTOR BETWEEN TCM AND TRANSMISSION. Turn the ignition switch to OFF. Disconnect the connectors from TCM and transmission. Measure the resistance of harness between TCM and transmission connector. Connector & terminal (B54) No. 15 - (B11) No. 13: (B54) No. 5 - Chassis ground: (B54) No. 14 - Chassis ground:	Is the resistance less than 1 Ω?	Go to step 3.	Repair the open circuit of harness between TCM connector and transmission connector.
3 CHECK HARNESS CONNECTOR BETWEEN TCM AND BODY HARNESS. Measure the resistance of harness between TCM connector and body harness. Connector & terminal (B54) No. 15 - Chassis ground:	Is the resistance more than 1 MΩ?	Go to step 4.	Repair the short circuit of harness between TCM connector and transmission connector.
4 CHECK HARNESS CONNECTOR BETWEEN TRANSMISSION AND CONTROL VALVE BODY. Turn the ignition switch to OFF. Disconnect the connector from transmission. Remove the transmission connector from bracket. Lift up the vehicle and place it on rigid racks. NOTE: Raise all wheels off floor. Drain the ATF. CAUTION: Do not drain ATF until it cools down. Remove the oil pan, and disconnect the control valve body connector. Measure the resistance between transmission connector and control valve body connector. Connector & terminal (T4) No. 13 - (T16) No. 1:	Is the resistance less than 1 Ω?	Go to step 5.	Repair the open circuit of harness between transmission connector and control valve body connector.
5 CHECK HARNESS CONNECTOR BETWEEN TRANSMISSION AND CONTROL VALVE BODY. Measure the resistance between chassis ground and control valve body connector. Connector & terminal (T16) No. 1 - Chassis ground:	Is the resistance more than 1 MΩ?	Go to step 6.	Repair the short circuit of harness between control valve body connector and transmission ground.
6 CHECK LOW COAST BRAKE SOLENOID. Measure the resistance of harness connector between control valve body connector and transmission ground. Connector & terminal (T16) No. 1 - Transmission ground:	Is the resistance between 5 - 17Ω?	Go to step 7.	Replace the control valve body. < Ref. to CONTROL VALVE BODY . >
7 CHECK POOR CONTACT. Check that there are no poor contact in TCM connector, transmission connector and control valve body connector.	Is there any loosing terminal, entering foreign matter, damaging connector body?	Repair the poor contact.	Go to step 8.
8 CHECK AFTER REPAIR. Perform the Clear Memory Mode. Drive for a while, read the DTC, and check that there is no faulty.	Is DTC displayed?	Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . >	Perform the P0882 diagnosis. < Ref. to DTC P0882 TCM POWER INPUT SIGNAL LOW , Diagnostic Procedure with Diagnostic Trouble Code (DTC). >
