Parking Pawl: Installation

WARNING: This page is about a different variant/trim than selected.

Set the transmission to the N range.
Install the parking pawl, parking pawl shaft and return spring.

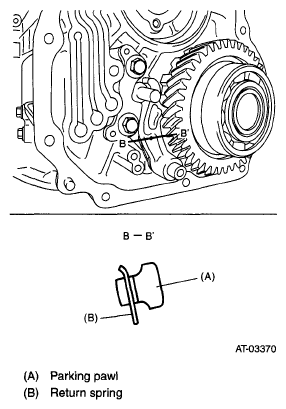

Fig 1: Identifying Parking Pawl, Parking Pawl Shaft And Return Spring
Install the parking support actuator.
Tightening torque:

10±2 N.m(1.0±0.2 kgf-m, 7.4±1.5 ft-lb)

Fig 2: Identifying Parking Support Actuator

Using the ST, tighten the bolts which tightened in step 3) with specified angle.
Tightening angle: 17°±2°

ST 18854AA000 ANGLE GAUGE

NOTE: Do not use extension as much as possible.

Fig 3: Tightening Bolts

Fig 4: Tightening Bolts Angle
Make sure that the return spring is sticking out of the parking pole hole.

Fig 5: Identifying Return Spring And Parking Pole Hole
Install the front vehicle speed sensor. < Ref. to INSTALLATION , Front Vehicle Speed Sensor. >
Install the center differential carrier. < Ref. to INSTALLATION , Center Differential Carrier. >
Install the extension case. < Ref. to INSTALLATION , Extension Case. >
Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
