Section 17 (Automatic Transmission 5AT)
>>
General Description
>>
Components With Torque Specifications
>>
Torque Converter Clutch & Transmission Assembly
Torque Converter Clutch & Transmission Assembly
WARNING:
This page is about a different variant/trim than selected.

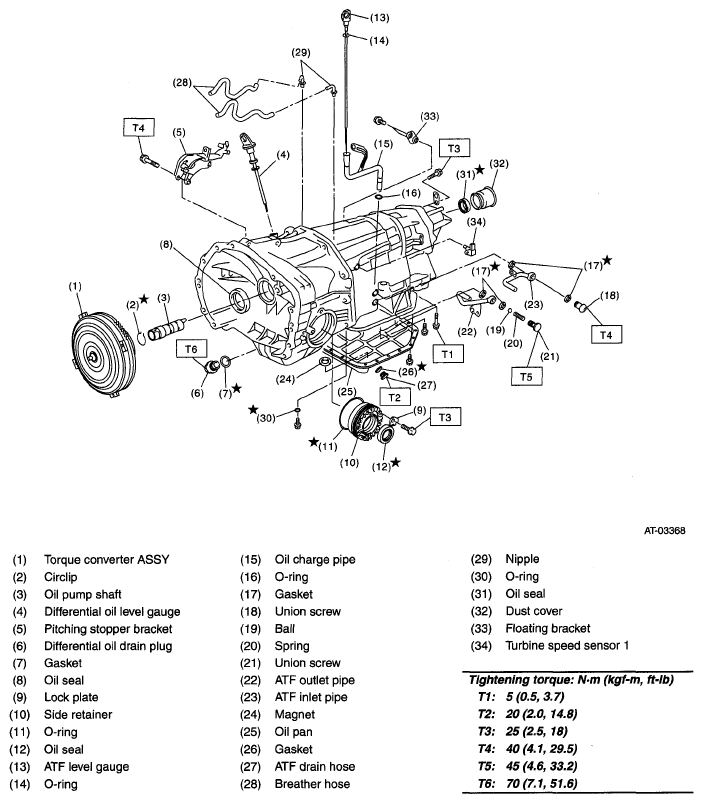

Fig 1: Torque Converter Clutch And Transmission Replacement Components With Torque Specifications
