ATF Cooler Pipe and Hose: Installation

WARNING: This page is about a different variant/trim than selected.

Install the oil cooler inlet and outlet pipes with new washer.
Tightening torque:

T1: 40 N.m (4.1 kgf-m, 29.5 ft-lb)

T2: 41 N.m (4.2 kgf-m, 30.4 ft-lb)

T3: 45 N.m (4.6 kgf-m, 33.2 ft-lb)

Fig 1: Identifying Oil Cooler Inlet And Outlet Pipes With New Washer

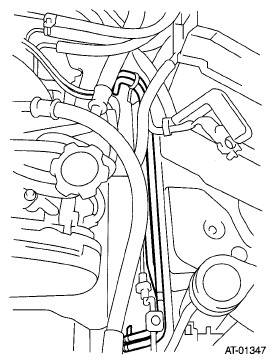

Install the ATF cooler pipe to frame.

Fig 2: Identifying ATF Cooler Pipe From Frame
Connect the ATF cooler hose to the pipe on the transmission side.
NOTE:
- Install so that the hose is not folded over, excessively bent or twisted.
- Insert the hose to the specified position.

  Fig 3: Identifying ATF Cooler Hoses From Pipes
Connect the ATF cooler hose to the pipe on the radiator side.
NOTE:
- Install so that the hose is not folded over, excessively bent or twisted.
- Insert the hose to the specified position.

  Fig 4: Identifying ATF Cooler Hose From Radiator
Install the radiator under cover.
Tightening torque: 4.9 N.m (0.5 kgf-m, 3.6 ft-lb)

Fig 5: Locating Radiator Under Cover
Install the under cover.
Install the battery.
Fill ATF. < Ref. to AUTOMATIC TRANSMISSION FLUID . >
NOTE: Make sure there are no ATF leaks in joints between the transmission, radiator, pipes, and hoses.
