Section 16 (Automatic Transmission (Diagnostics) 4AT)
>>
Electrical Component Location
>>
Location
>>
Sensor
Section 16 (Automatic Transmission (Diagnostics) 4AT): Electrical Component Location: Location: Sensor
WARNING:
This page is about a different variant/trim than selected.

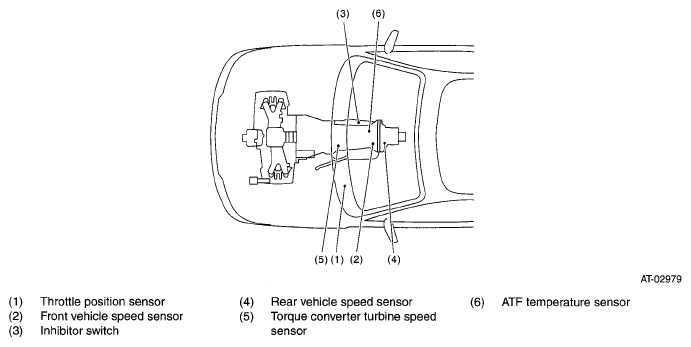

Fig 1: Identifying Electrical Components Location - Sensor (1 Of 2)

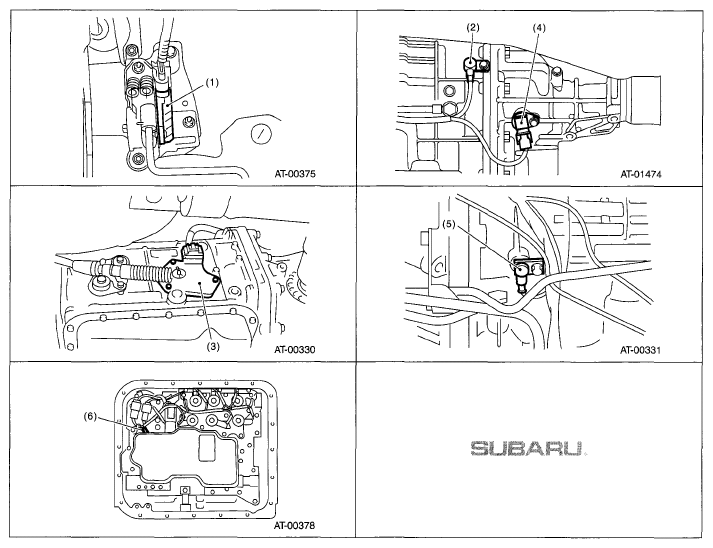

Fig 2: Identifying Electrical Components Location - Sensor (2 Of 2)
