Oil Pump: Disassembly
WARNING: This page is about a different variant/trim than selected.

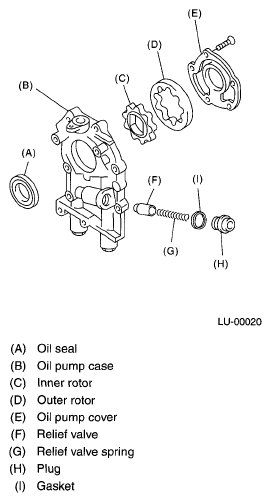

Remove the screw which secures oil pump cover and then disassemble oil pump. Inscribe alignment marks on the inner and outer rotors so that they can be replaced in their original positions during reassembly.
CAUTION:
Before disassembling the oil pump, remove the relief valve.
