Oil Pump: Assembly

WARNING: This page is about a different variant/trim than selected.

Assemble the front oil seal by using ST.
ST 499587100 OIL SEAL INSTALLER

NOTE: Use a new oil seal.

Fig 1: Assembling Front Oil Seal By Using ST (499587100)
Apply a coat of engine oil to inner and outer rotors.
Assemble the inner and outer rotors in their original positions.
Assemble the oil relief valve and install relief valve spring and plug.
NOTE: Use a new gasket.
Assemble the oil pump cover.
Tightening torque:

T1: 5.4 N.m (0.55 kgf-m, 4.0 ft-lb)

T2: 44 N.m (4.5 kgf-m, 32.5 ft-lb)

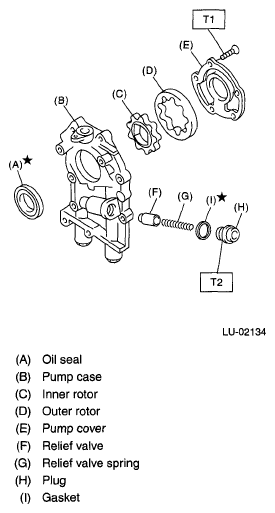

Fig 2: Identifying Oil Pump Components
