Section 14 (Lubrication (H4SO))
>>
Oil Pressure System
>>
Wiring Diagram
Oil Pressure System: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

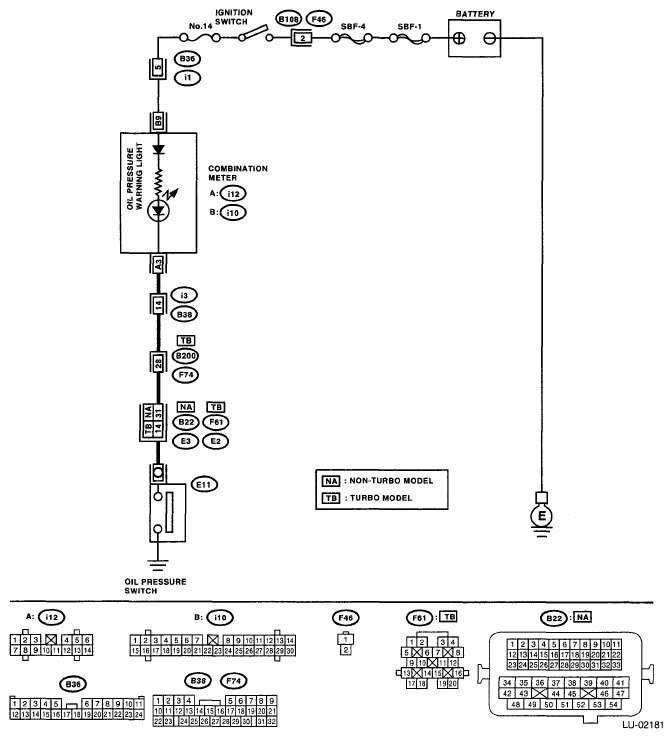

Fig 1: Oil Pressure System - Wiring Diagram
