Section 12 (Automatic Transmission 4AT)
>>
General Description
>>
Components With Torque Specifications
>>
Low Clutch And Low & Reverse Break
Low Clutch And Low & Reverse Break
WARNING:
This page is about a different variant/trim than selected.

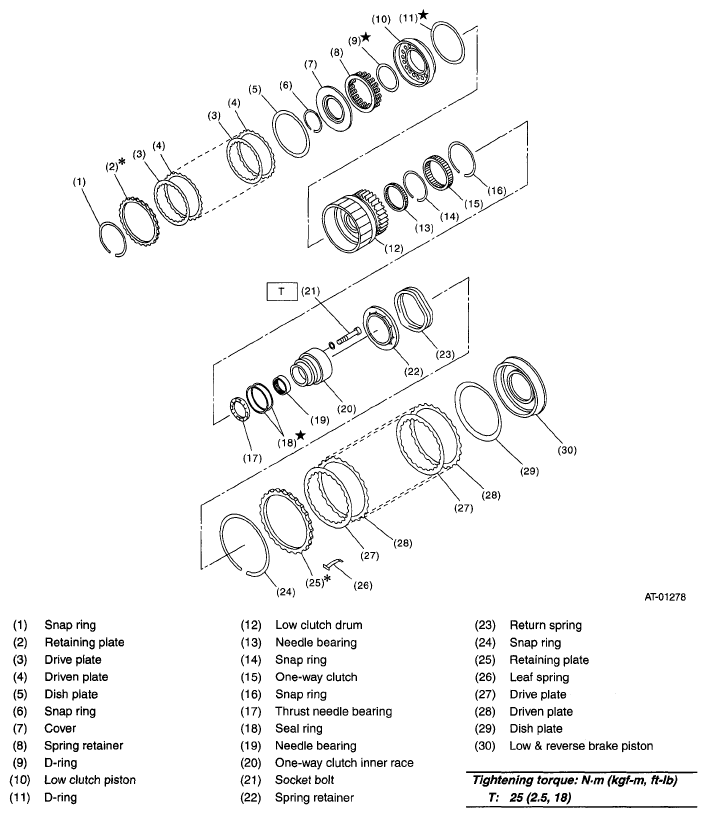

Fig 1: Exploded View Of Low Clutch And Low & Reverse Break Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
