Malfunction Indicator Light Does Not Go Off

WARNING: This page is about a different variant/trim than selected.

DIAGNOSIS:

The malfunction indicator light circuit is shorted.

TROUBLE SYMPTOM:

Although malfunction indicator light comes on when the engine runs, DTC is not shown on the Subaru Select Monitor display.

WIRING DIAGRAM:

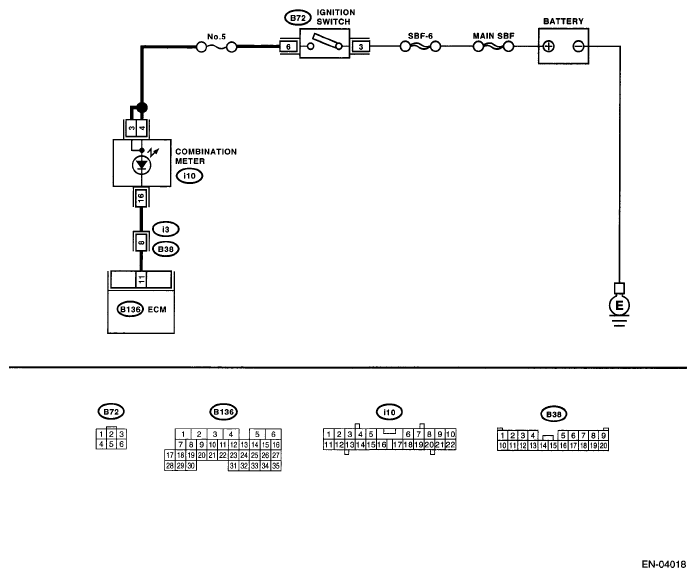

Fig 1: Malfunction Indicator Light Does Not Go OFF - Wiring Diagram

DIAGNOSIS PROCEDURE

Step	Check	Yes	No
1 CHECK HARNESS BETWEEN COMBINATION METER AND ECM CONNECTOR. Turn the ignition switch to OFF. Disconnect the connectors from ECM. Turn the ignition switch to ON.	Does the malfunction indicator light illuminate?	Repair the short circuit of harness between combination meter and ECM connector.	Replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . >
