DTC P1499 EGR Solenoid Valve Signal #4 Circuit Malfunction (High Input)

WARNING: This page is about a different variant/trim than selected.

DTC DETECTING CONDITION:

Immediately at fault recognition
GENERAL DESCRIPTION < Ref. to DTC P1493 EGR SOLENOID VALVE SIGNAL #1 CIRCUIT MALFUNCTION (HIGH INPUT) , Diagnostic Trouble Code (DTC) Detecting Criteria. > < Ref. to DTC P1495 EGR SOLENOID VALVE SIGNAL #2 CIRCUIT MALFUNCTION (HIGH INPUT) , Diagnostic Trouble Code (DTC) Detecting Criteria. > < Ref. to DTC P1497 EGR SOLENOID VALVE SIGNAL #3 CIRCUIT MALFUNCTION (HIGH INPUT) , Diagnostic Trouble Code (DTC) Detecting Criteria. > < Ref. to DTC P1499 EGR SOLENOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (HIGH INPUT) , Diagnostic Trouble Code (DTC) Detecting Criteria. >

TROUBLE SYMPTOM:

Erroneous idling
Poor driving performance
Engine breathing

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode < Ref. to OPERATION , Clear Memory Mode. > and Inspection Mode < Ref. to PROCEDURE , Inspection Mode. >.

WIRING DIAGRAM:

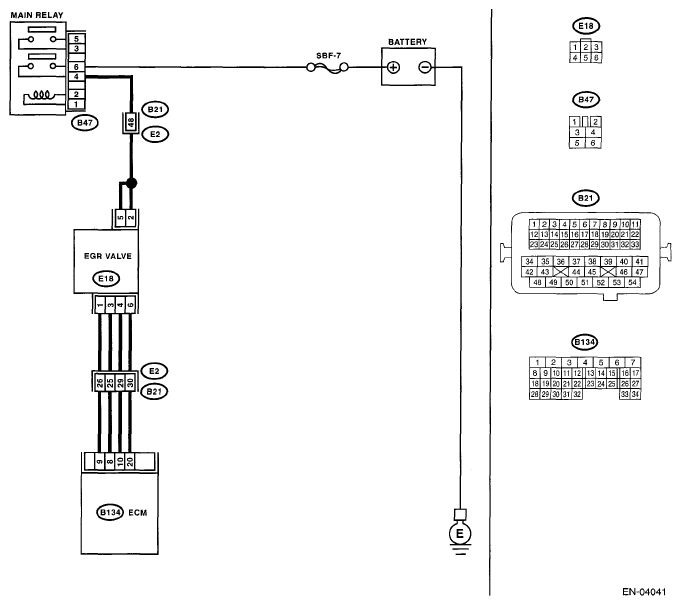

Fig 1: EGR Solenoid Valve Signal #4 Circuit Malfunction (High Input) - Wiring Diagram

DIAGNOSIS PROCEDURE

Step	Check	Yes	No
1 CHECK ANY OTHER DTC ON DISPLAY.	Is any other DTC displayed?	Check DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >	Go to step 2 .
2 CHECK HARNESS BETWEEN ECM AND EGR VALVE CONNECTOR. Turn the ignition switch to OFF. Disconnect the connector from EGR valve. Turn the ignition switch to ON. Measure the voltage between ECM connector and chassis ground. Connector & terminal DTC P1493; (B134) No. 8 (+) - Chassis ground (-): DTC P1495; (B134) No. 9 (+) - Chassis ground (-): DTC P1497; (B134) No. 10 (+) - Chassis ground (-): DTC P1499; (B134) No. 20 (+) - Chassis ground (-):	Is the voltage more than 10 V?	Repair the battery short in harness between ECM and EGR valve connector. After repair, replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . >	Replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . >
