DTC P0452 Evaporative Emission Control System Pressure Sensor Low Input
WARNING: This page is about a different variant/trim than selected.
DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.
- GENERAL DESCRIPTION < Ref. to DTC P0452 EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR LOW INPUT , Diagnostic Trouble Code (DTC) Detecting Criteria. >
CAUTION:
After repairing or replacing the defective part, perform the Clear Memory Mode < Ref. to
OPERATION , Clear Memory Mode. > and Inspection Mode < Ref. to
PROCEDURE , Inspection Mode. >.

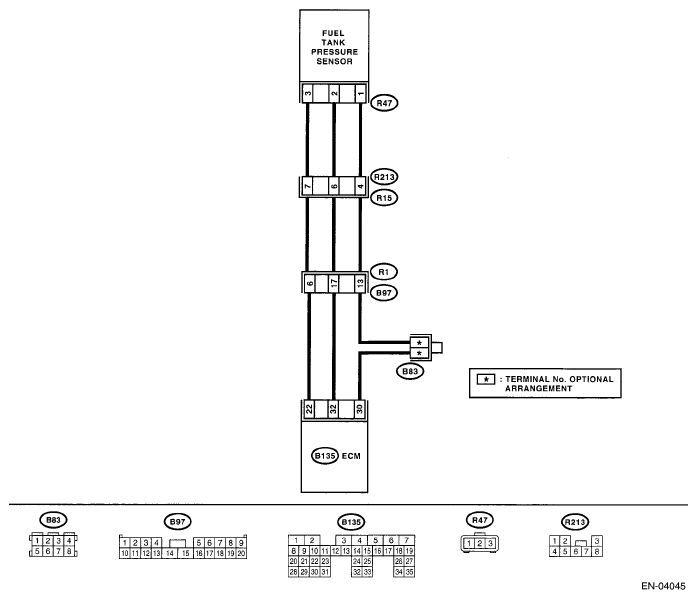

WIRING DIAGRAM:
DIAGNOSIS PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
1 CHECK CURRENT DATA.
NOTE:
Subaru Select Monitor
For detailed operation procedure, refer to "READ CURRENT DATA FOR ENGINE". < Ref. to SUBARU SELECT MONITOR . > |
Is the measured value less than -2.8 kPa (-21.0 mmHg, -0.827 inHg)? | Go to step 2. | Even if the malfunction indicator light illuminates, the circuit has returned to a normal condition at this time. |
| 2 CHECK POWER SUPPLY TO FUEL TANK PRESSURE SENSOR. Measure the voltage between ECM connector and chassis ground. Connector & terminal (B135) No. 22 (+) - Chassis ground (-): |
Is the voltage more than 4.5 V? | Go to step 4. | Go to step 3. |
| 3 CHECK POWER SUPPLY TO FUEL TANK PRESSURE SENSOR. Measure the voltage between ECM connector and chassis ground. Connector & terminal (B135) No. 22 (+) - Chassis ground (-): |
Does the voltage change by shaking the ECM harness and connector? | Repair the poor contact of ECM connector. | Contact the SOA service center. |
| 4 CHECK INPUT SIGNAL OF ECM. Measure the voltage between ECM and chassis ground. Connector & terminal (B135) No. 32 (+) - Chassis ground (-): |
Is the voltage less than 0.2 V? | Go to step 6. | Go to step 5. |
| 5 CHECK INPUT SIGNAL FOR ECM (USING SUBARU SELECT MONITOR). Read the data of fuel tank pressure sensor signal using Subaru Select Monitor.
NOTE:
Subaru Select Monitor
For detailed operation procedure, refer to "READ CURRENT DATA FOR ENGINE". < Ref. to SUBARU SELECT MONITOR . > |
Does the measured value change by shaking the ECM harness and connector? | Repair the poor contact of ECM connector. | Go to step 6. |
6 CHECK HARNESS CONNECTOR BETWEEN ECM AND FUEL TANK PRESSURE SENSOR.
|
Is the voltage more than 4.5 V? | Go to step 7. | Repair the harness and connector.
NOTE:
In this case, repair the following item:
|
7 CHECK HARNESS CONNECTOR BETWEEN ECM AND FUEL TANK PRESSURE SENSOR.
|
Is the resistance less than 1 Ω? | Go to step 8. | Repair the harness and connector.
NOTE:
In this case, repair the following item:
|
| 8 CHECK HARNESS CONNECTOR BETWEEN ECM AND FUEL TANK PRESSURE SENSOR. Measure the resistance of harness between connector (R15) and chassis ground. Connector & terminal (R15) No. 4 (+) - Chassis ground: |
Is the resistance more than 1 MΩ? | Go to step 9. | Repair the ground short circuit of harness between ECM and rear wiring harness connector. |
9 CHECK FUEL TANK HARNESS.
|
Is the resistance less than 1 Ω? | Go to step 10 . | Repair the open circuit in fuel tank cord. |
| 10 CHECK FUEL TANK HARNESS. Measure the resistance of fuel tank harness. Connector & terminal (R213) No. 4 - (R47) No. 1: |
Is the resistance less than 1 Ω? | Go to step 11 . | Repair the open circuit in fuel tank cord. |
| 11 CHECK FUEL TANK HARNESS. Measure the resistance of harness between fuel tank pressure sensor connector and engine ground. Connector & terminal (R47) No. 2 - Chassis ground: |
Is the resistance more than 1 MΩ? | Go to step 12 . | Repair the ground short circuit of fuel tank cord. |
| 12 CHECK POOR CONTACT. Check poor contact in fuel tank pressure sensor connector. |
Is there poor contact in fuel tank pressure sensor connector? | Repair the poor contact in fuel tank pressure sensor connector. | Replace the fuel tank pressure sensor. < Ref. to FUEL TANK PRESSURE SENSOR . > |
