DTC P0335 Crankshaft Position Sensor "A" Circuit

WARNING: This page is about a different variant/trim than selected.

DTC DETECTING CONDITION:

Immediately at fault recognition
GENERAL DESCRIPTION < Ref. to DTC P0335 CRANKSHAFT POSITION SENSOR "A" CIRCUIT , Diagnostic Trouble Code (DTC) Detecting Criteria. >

TROUBLE SYMPTOM:

Engine stalls.
Failure of engine to start

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode < Ref. to OPERATION , Clear Memory Mode. > and Inspection Mode < Ref. to PROCEDURE , Inspection Mode. >.

WIRING DIAGRAM:

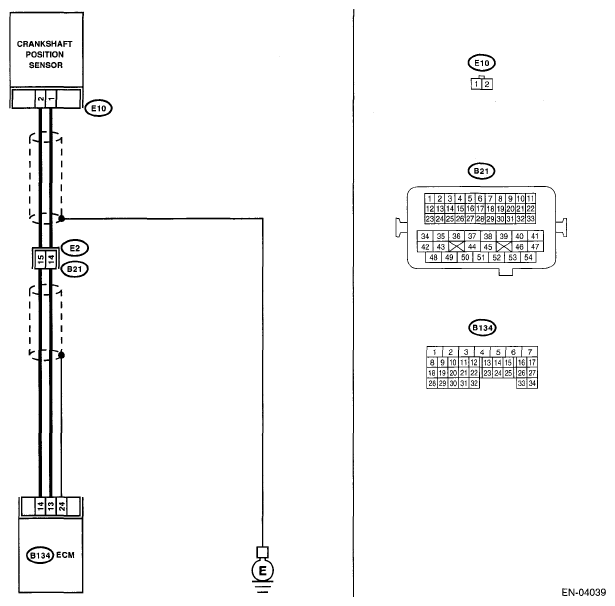

Fig 1: Crankshaft Position Sensor "A" Circuit - Wiring Diagram

DIAGNOSIS PROCEDURE

Step	Check	Yes	No
1 CHECK HARNESS BETWEEN CRANKSHAFT POSITION SENSOR AND ECM CONNECTOR. Turn the ignition switch to OFF. Disconnect the connector from crankshaft position sensor. Measure the resistance of harness between crankshaft position sensor connector and engine ground. Connector & terminal (E10) No. 1 - Engine ground:	Is the resistance more than 100kΩ?	Repair the harness and connector. NOTE: In this case, repair the following item: Open circuit of harness between crankshaft position sensor and ECM connector Poor contact in ECM connector Poor contact of coupling connector	Go to step 2.
2 CHECK HARNESS BETWEEN CRANKSHAFT POSITION SENSOR AND ECM CONNECTOR. Measure the resistance of harness between crankshaft position sensor connector and engine ground. Connector & terminal (E10) No. 1 - Engine ground:	Is the resistance less than 10 Ω?	Repair the ground short circuit of harness between crankshaft position sensor and ECM connector. NOTE: The harness between both connectors are shielded. Repair the ground short circuit of harness with shield.	Go to step 3.
3 CHECK HARNESS BETWEEN CRANKSHAFT POSITION SENSOR AND ECM CONNECTOR. Measure the resistance of harness between crankshaft position sensor connector and engine ground. Connector & terminal (E10) No. 2 - Engine ground:	Is the resistance less than 5 Ω?	Go to step 4.	Repair the harness and connector. NOTE: In this case, repair the following item: Open circuit of harness between crankshaft position sensor and ECM connector Poor contact in ECM connector Poor contact of coupling connector
4 CHECK CONDITION OF CRANKSHAFT POSITION SENSOR.	Is the crankshaft position sensor installation bolt tightened securely?	Go to step 5.	Tighten the crankshaft position sensor installation bolt securely.
5 CHECK CRANKSHAFT POSITION SENSOR. Remove the crankshaft position sensor. Measure the resistance between connector terminals of crankshaft position sensor. Terminals No. 1 - No. 2:	Is the resistance between 1 and 4 kΩ?	Repair the poor contact of crankshaft position sensor connector.	Replace the crankshaft position sensor. < Ref. to CRANKSHAFT POSITION SENSOR . >
