DTC P0181 Fuel Temperature Sensor "A" Circuit Range/Performance
WARNING: This page is about a different variant/trim than selected.
DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.
- GENERAL DESCRIPTION < Ref. to DTC P0181 FUEL TEMPERATURE SENSOR "A" CIRCUIT RANGE/PERFORMANCE , Diagnostic Trouble Code (DTC) Detecting Criteria. >
CAUTION:
After repairing or replacing the defective part, perform the Clear Memory Mode < Ref. to
OPERATION , Clear Memory Mode. > and Inspection Mode < Ref. to
PROCEDURE , Inspection Mode. >.

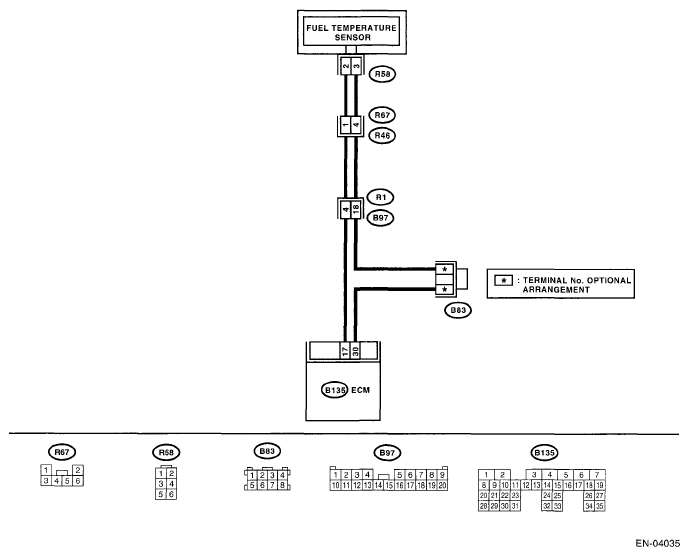

WIRING DIAGRAM:
DIAGNOSIS PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
| 1 CHECK ANY OTHER DTC ON DISPLAY. | Is any other DTC displayed? | Check DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to
LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
NOTE:
In this case, it is not necessary to inspect DTC P0181.
|
Replace the fuel temperature sensor. < Ref. to FUEL TEMPERATURE SENSOR . > |
