Cylinder Head And Valve Assembly

WARNING: This page is about a different variant/trim than selected.

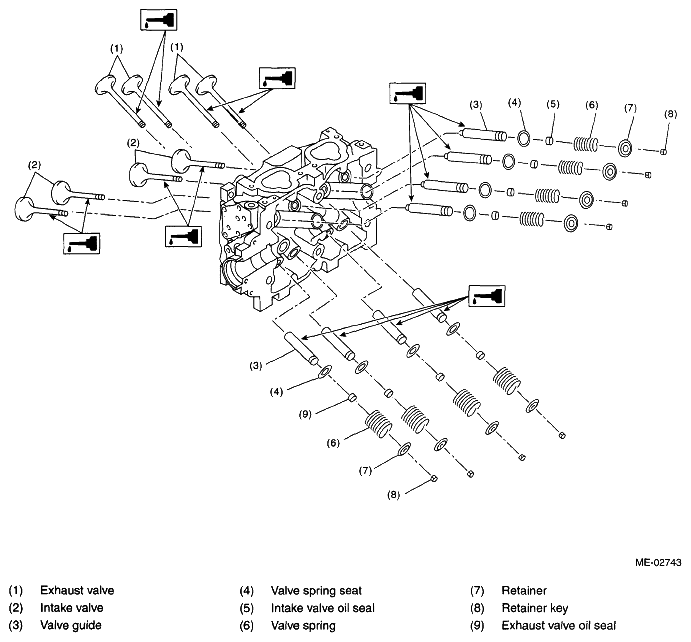

Fig 1: Identifying Cylinder Head And Valve Assembly Components
G05016977Courtesy of SUBARU OF AMERICA, INC.
