Cylinder Block: Disassembly

WARNING: This page is about a different variant/trim than selected.

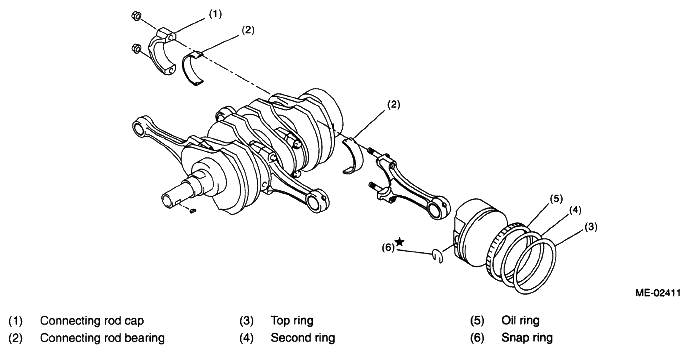

Fig 1: Identifying Crankshaft Assembly Components
G05017192Courtesy of SUBARU OF AMERICA, INC.
  1. Remove the connecting rod cap.
  2. Remove the connecting rod bearing.
    NOTE: Arrange the removed connecting rod, connecting rod cap and bearing in order, to prevent confusion.
  3. Remove the piston rings using piston ring expander.
  4. Remove the oil ring by hand.
    NOTE: Arrange the removed piston rings in proper order, to prevent confusion.
  5. Remove the snap ring.
