Malfunction Indicator Light Does Not Go Off
WARNING: This page is about a different car, the 2006 Subaru Outback. However, it is still accessible from the selected car via links, so may be relevant.
DIAGNOSIS:
The malfunction indicator light circuit is shorted.
TROUBLE SYMPTOM:
Although malfunction indicator light comes on when the engine runs, DTC is not shown on the Subaru Select Monitor display.

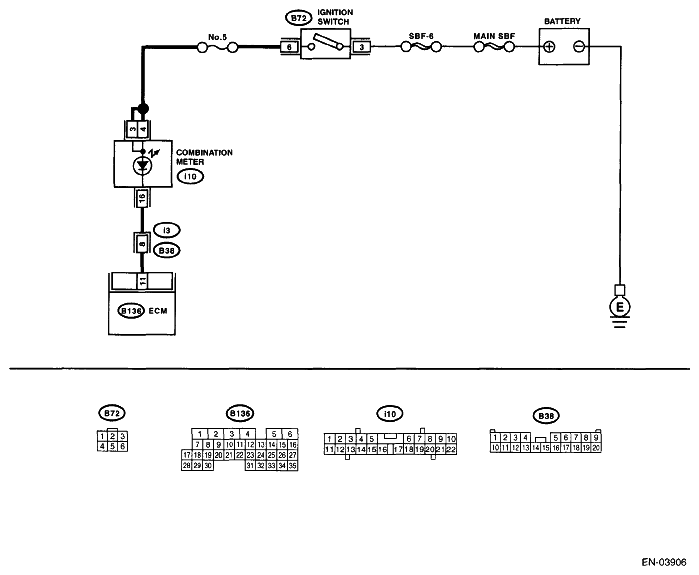

WIRING DIAGRAM:
MALFUNCTION INDICATOR LIGHT DOES NOT GO OFF - DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
1 CHECK HARNESS BETWEEN COMBINATION METER AND ECM CONNECTOR.
|
Does the malfunction indicator light illuminate? | Repair the short circuit of harness between combination meter and ECM connector. | Replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . > |
