Section 63 (Engine Controls - Engine (Diagnostics) (H6DO)): Electrical Component Location: Location: Engine

WARNING: This page is about a different car, the 2006 Subaru Outback. However, it is still accessible from the selected car via links, so may be relevant.

Control module

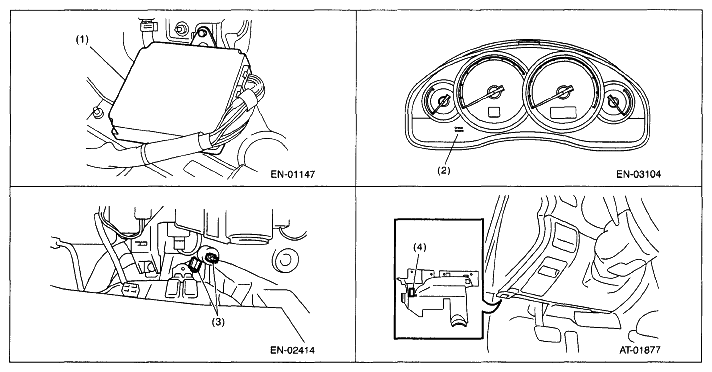

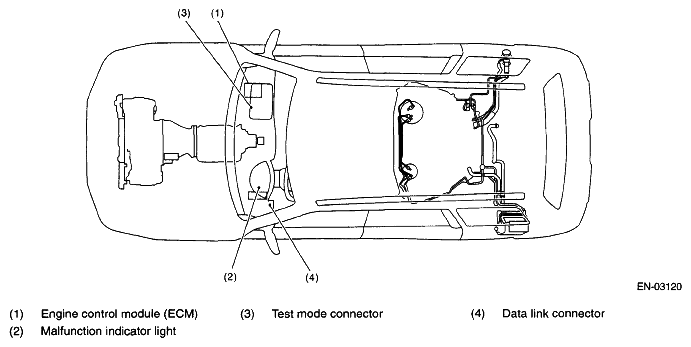

Fig 1: Identifying Engine Control Module Components (1 Of 2)

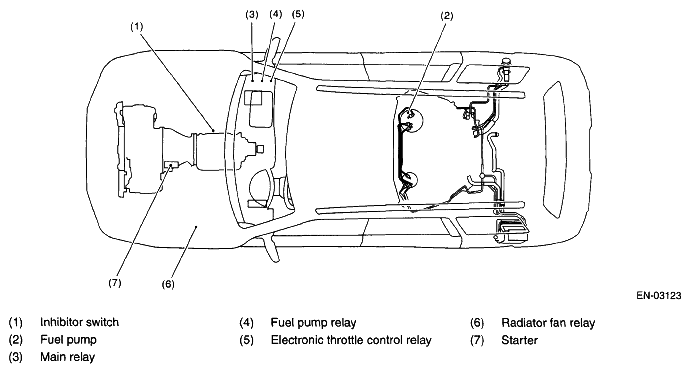

Fig 2: Identifying Engine Control Module Components (2 Of 2)
Sensor

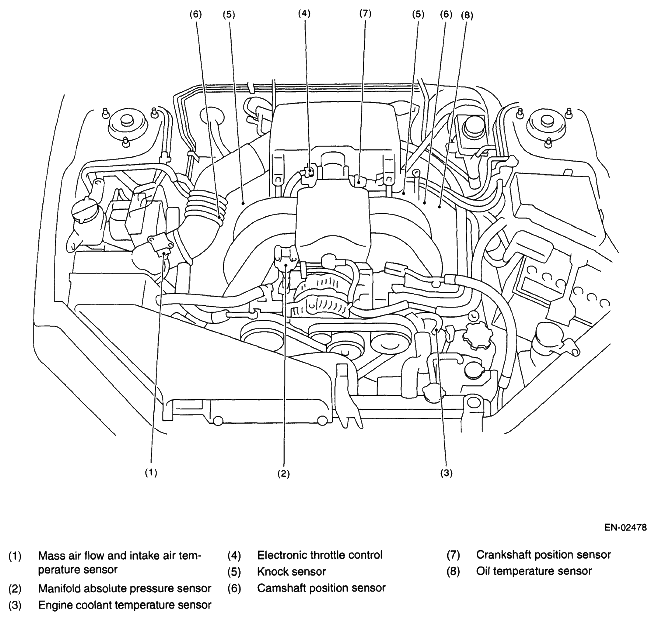

Fig 3: Identifying Engine Sensors (1 Of 6)

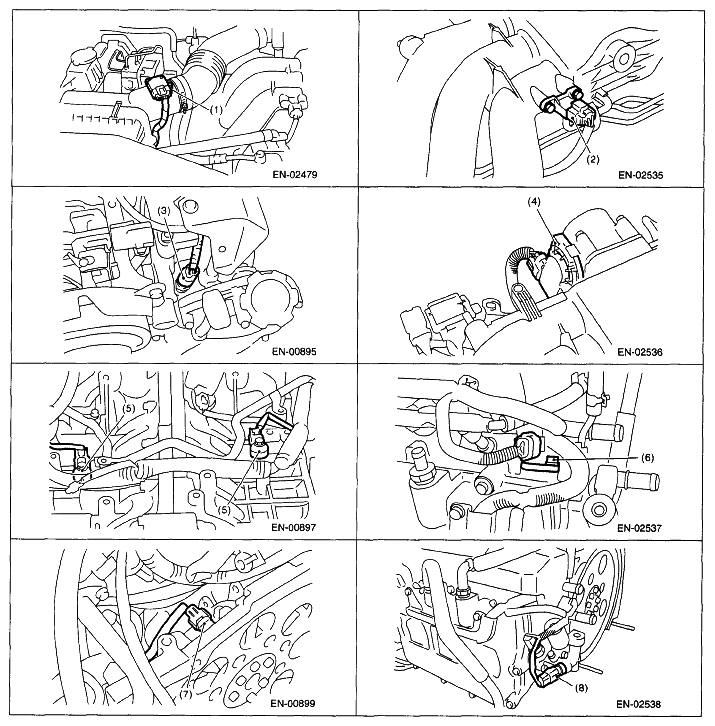

Fig 4: Identifying Engine Sensors (2 Of 6)

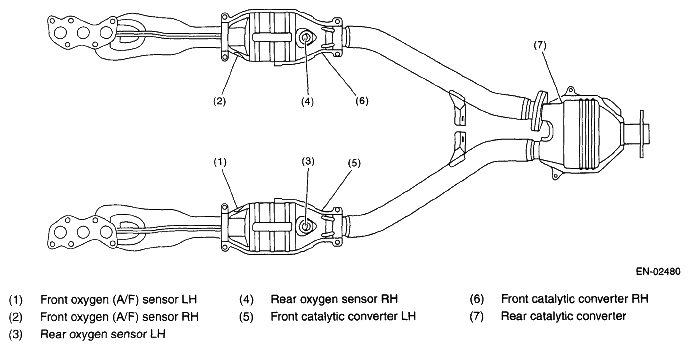

Fig 5: Identifying Engine Sensors (3 Of 6)

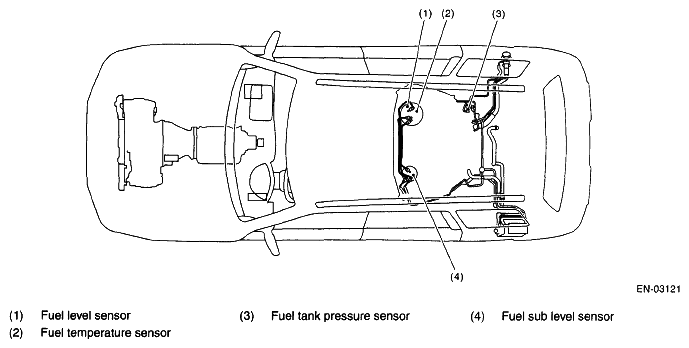

Fig 6: Identifying Engine Sensors (4 Of 6)

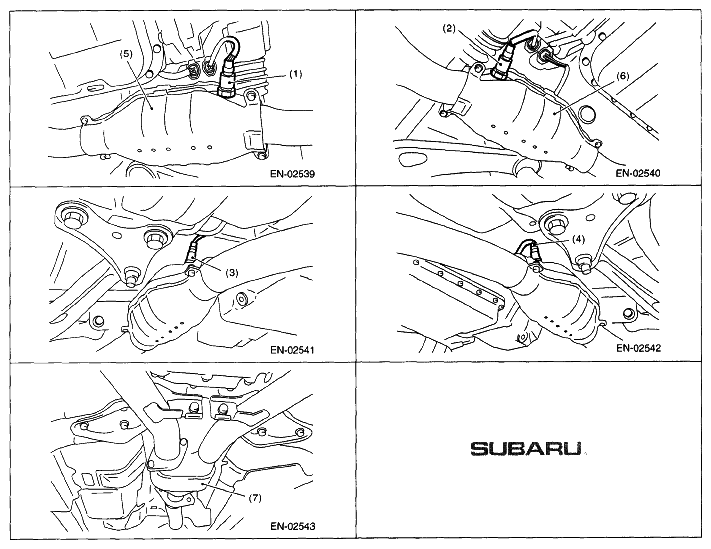

Fig 7: Identifying Engine Sensors (5 Of 6)

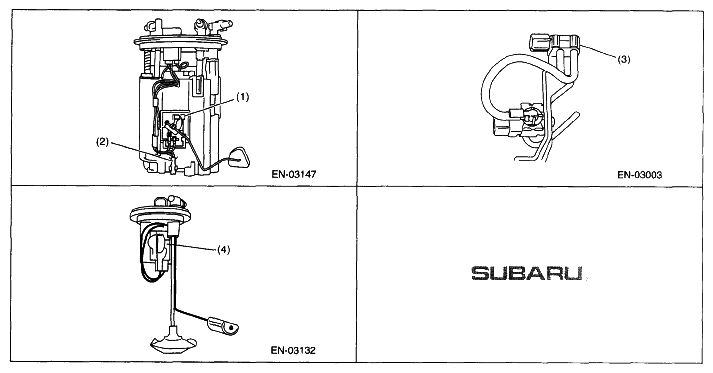

Fig 8: Identifying Engine Sensors (6 Of 6)

Solenoid valve, actuator, emission control system parts and ignition system parts

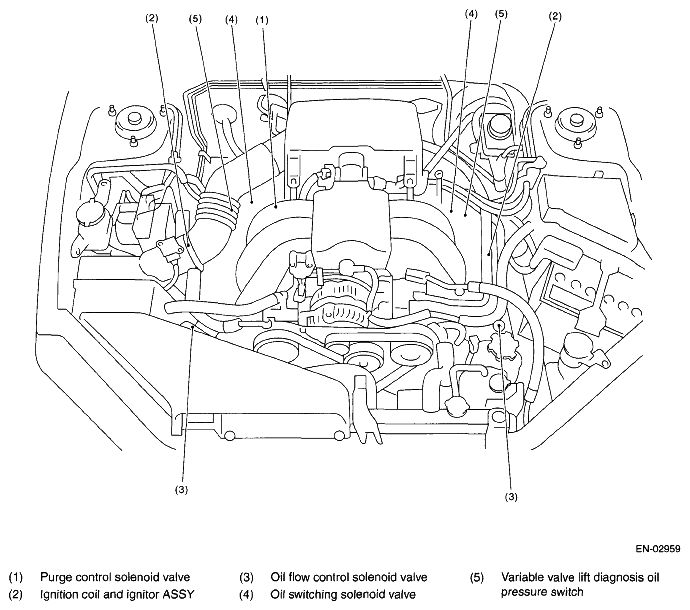

Fig 9: Identifying Solenoid Valve, Actuator, Emission Control And Ignition System Parts (1 Of 6)

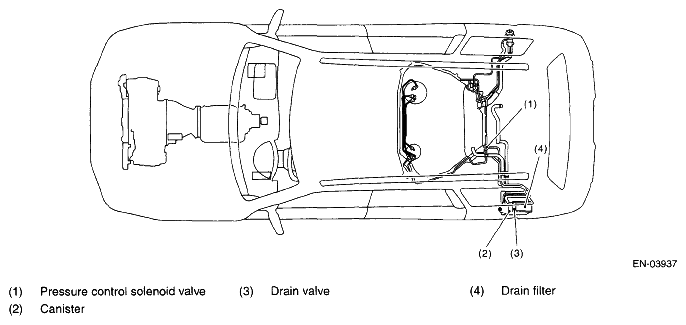

Fig 10: Identifying Solenoid Valve, Actuator, Emission Control And Ignition System Parts (2 Of 6)

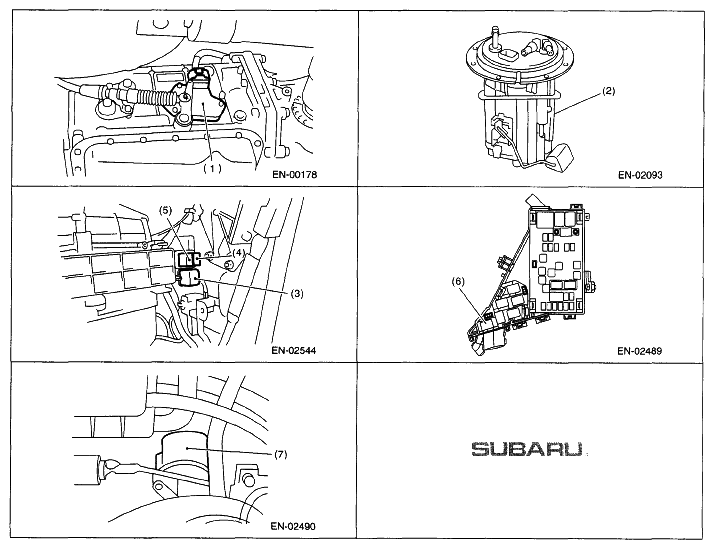

Fig 11: Identifying Solenoid Valve, Actuator, Emission Control And Ignition System Parts (3 Of 6)

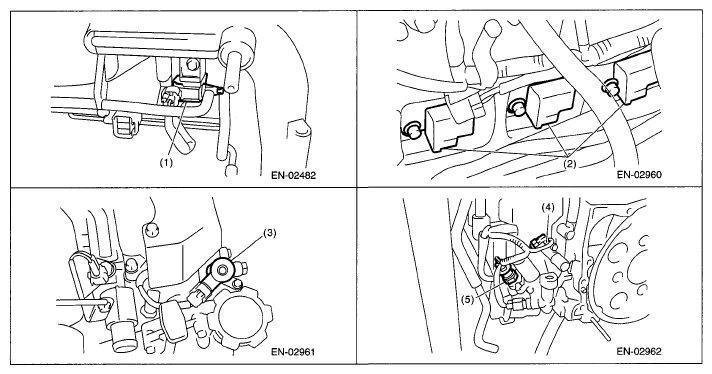

Fig 12: Identifying Solenoid Valve, Actuator, Emission Control And Ignition System Parts (4 Of 6)

Fig 13: Identifying Solenoid Valve, Actuator, Emission Control And Ignition System Parts (5 Of 6)

Fig 14: Identifying Solenoid Valve, Actuator, Emission Control And Ignition System Parts (6 Of 6)
