DTC P0512 Starter Request Circuit
WARNING: This page is about a different car, the 2006 Subaru Outback. However, it is still accessible from the selected car via links, so may be relevant.
DTC DETECTING CONDITION:
- Immediately at fault recognition
- GENERAL DESCRIPTION < Ref. to DTC P0512 STARTER REQUEST CIRCUIT , Diagnostic Trouble Code (DTC) Detecting Criteria. >
TROUBLE SYMPTOM:
Failure of engine to start
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode < Ref. to
OPERATION , Clear Memory Mode. > and Inspection Mode < Ref. to
PROCEDURE , Inspection Mode. >.

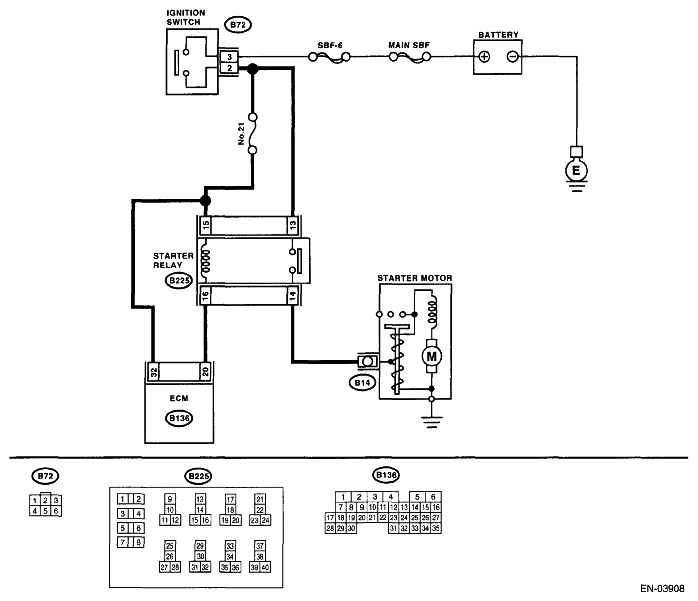

WIRING DIAGRAM:
DTC P0512 STARTER REQUEST CIRCUIT - DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
| 1 CHECK OPERATION OF STARTER MOTOR. Turn the ignition switch to ON.
NOTE:
Place the inhibitor switch in each position.
|
Does the starter motor operate? | Repair the battery short circuit in starter motor circuit. | Check the starter motor circuit. < Ref. to STARTER MOTOR CIRCUIT , Diagnostics for Engine Starting Failure. > |
