DTC P0451 Evaporative Emission Control System Pressure Sensor

WARNING: This page is about a different car, the 2006 Subaru Outback. However, it is still accessible from the selected car via links, so may be relevant.

DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
GENERAL DESCRIPTION < Ref. to DTC P0451 EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR , Diagnostic Trouble Code (DTC) Detecting Criteria. >

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode < Ref. to OPERATION , Clear Memory Mode. > and Inspection Mode < Ref. to PROCEDURE , Inspection Mode. >.

WIRING DIAGRAM:

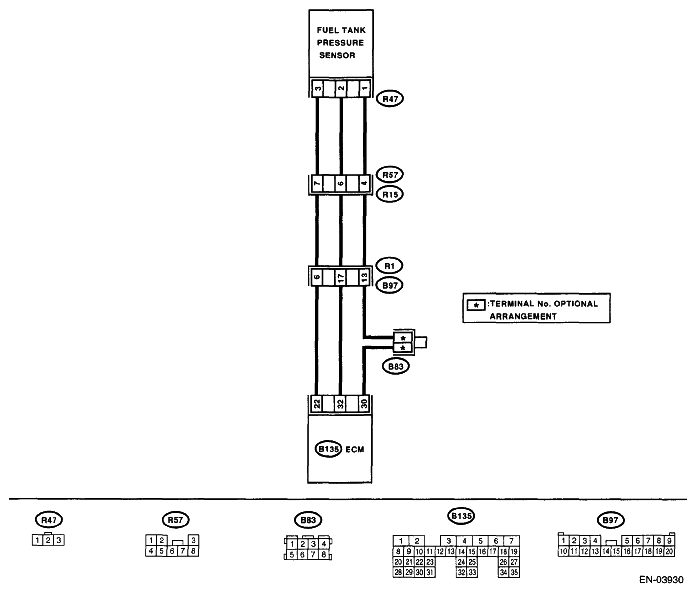

Fig 1: Evaporative Emission Control System Pressure Sensor - Wiring Diagram

DTC P0451 EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR - DIAGNOSTIC PROCEDURE

Step	Check	Yes	No
1 CHECK FOR ANY OTHER DTC ON DISPLAY.	Is any other DTC displayed?	Check the appropriate DTC using the "List of Diagnostic Trouble Code (DTC) Trouble Code (DTC)". < Ref. to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >	Go to step 2.
2 CHECK FUEL FILLER CAP. Turn the ignition switch to OFF. Open the fuel flap.	Is the fuel filler cap tightened securely?	Go to step 3.	Tighten fuel filler cap securely.
3 CHECK PRESSURE/VACUUM LINE. NOTE: Check the following items. Disconnection, leakage and clogging of the vacuum hoses and pipes between fuel tank pressure sensor and fuel tank Disconnection, leakage and clogging of air ventilation hoses and pipes between fuel filler pipe and fuel tank	Is there any fault in pressure/vacuum line?	Repair or replace the hoses and pipes.	Replace the fuel tank pressure sensor. < Ref. to FUEL TANK PRESSURE SENSOR . >
