DTC P0230 Fuel Pump Primary Circuit

WARNING: This page is about a different car, the 2006 Subaru Outback. However, it is still accessible from the selected car via links, so may be relevant.

DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
GENERAL DESCRIPTION < Ref. to DTC P0230 FUEL PUMP PRIMARY CIRCUIT , Diagnostic Trouble Code (DTC) Detecting Criteria. >

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode < Ref. to OPERATION , Clear Memory Mode. > and Inspection Mode < Ref. to PROCEDURE , Inspection Mode. >.

WIRING DIAGRAM:

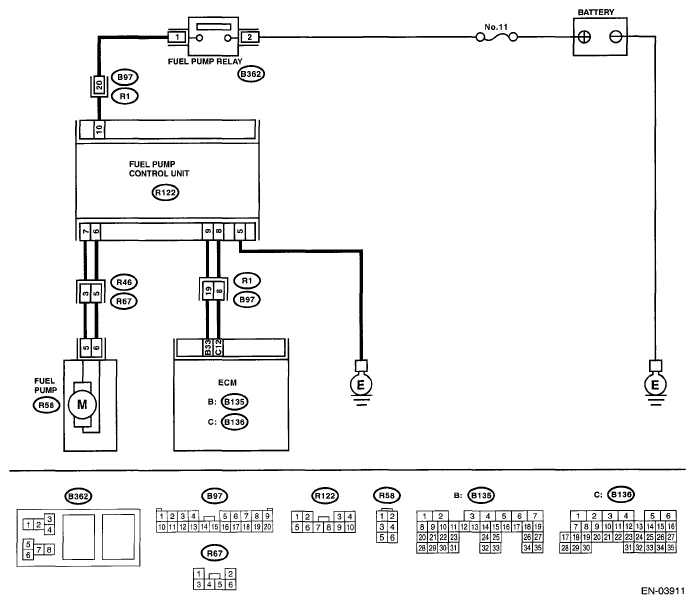

Fig 1: Fuel Pump Control Unit - Wiring Diagram

DTC P0230 FUEL PUMP PRIMARY CIRCUIT - DIAGNOSTIC PROCEDURE

Step	Check	Yes	No
1 CHECK POWER SUPPLY CIRCUIT TO FUEL PUMP CONTROL UNIT. Turn the ignition switch to OFF. Disconnect the connector from fuel pump control unit. Turn the ignition switch to ON. Measure the voltage between fuel pump control unit and chassis ground. Connector & terminal (R122) No. 10 (+) - Chassis ground (-):	Is the voltage more than 10 V?	Go to step 2.	Repair the power supply circuit. NOTE: In this case, repair the following item: Open or ground short circuit of harness between fuel pump relay and fuel pump control unit Poor contact of fuel pump control unit connector Poor contact of fuel pump relay connector
2 CHECK GROUND CIRCUIT OF FUEL PUMP CONTROL UNIT. Turn the ignition switch to OFF. Measure the resistance of harness between fuel pump control unit and chassis ground. Connector & terminal (R122) No. 5 - Chassis ground:	Is the resistance less than 5 Ω?	Go to step 3.	Repair the harness and connector. NOTE: In this case, repair the following item: Open circuit between fuel pump control unit and chassis ground Poor contact of fuel pump control unit connector
3 CHECK HARNESS BETWEEN FUEL PUMP CONTROL UNIT AND FUEL PUMP CONNECTOR. Disconnect the connector from fuel pump. Measure the resistance of harness between fuel pump control unit and fuel pump connector. Connector & terminal (R122) No. 7 - (R58) No. 5: (R122) No. 6 - (R58) No. 6:	Is the resistance less than 1 Ω?	Go to step 4.	Repair the open circuit between fuel pump control unit and fuel pump.
4 CHECK HARNESS BETWEEN FUEL PUMP CONTROL UNIT AND FUEL PUMP CONNECTOR. Measure the resistance of harness between fuel pump control unit and chassis ground. Connector & terminal (R122) No. 7 - Chassis ground: (R122) No. 6 - Chassis ground:	Is the resistance more than 1 MΩ?	Go to step 5.	Repair the ground short circuit between fuel pump control unit and fuel pump.
5 CHECK HARNESS BETWEEN FUEL PUMP CONTROL UNIT AND ECM CONNECTOR. Turn the ignition switch to OFF. Disconnect the connectors from ECM. Measure the resistance of harness between fuel pump control unit and ECM connector. Connector & terminal (R122) No. 9 - (B135) No. 33: (B122) No. 8 - (F136) No. 12:	Is the resistance less than 1 Ω?	Go to step 6.	Repair the harness and connector. NOTE: In this case, repair the following item: Open circuit between fuel pump control unit and ECM Poor contact of fuel pump control unit and ECM connector
6 CHECK HARNESS BETWEEN FUEL PUMP CONTROL UNIT AND ECM CONNECTOR. Measure the resistance of harness between fuel pump control unit and chassis ground. Connector & terminal (R122) No. 9 - Chassis ground: (R122) No. 8 - Chassis ground:	Is the resistance more than 1 MΩ?	Go to step 7.	Repair the ground short circuit between fuel pump control unit and ECM.
7 CHECK POOR CONTACT. Check poor contact of ECM and fuel pump control unit connector.	Is there poor contact of ECM and fuel pump control unit connector?	Repair the poor contact of ECM and fuel pump control unit connector.	Go to step 8.
8 CHECK EXPERIENCE OF RUNNING OUT OF FUEL.	Has the vehicle experienced running out of fuel?	Finish the diagnosis. NOTE: DTC may be re corded as a result of fuel pump idling while running out of fuel.	Replace the fuel pump control unit. < Ref. to FUEL PUMP CONTROL UNIT . >
