DTC P0196 Engine Oil Temperature Sensor Circuit Range/Performance
WARNING: This page is about a different car, the 2006 Subaru Outback. However, it is still accessible from the selected car via links, so may be relevant.
DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
- GENERAL DESCRIPTION < Ref. to DTC P0196 ENGINE OIL TEMPERATURE SENSOR CIRCUIT RANGE/PERFORMANCE , Diagnostic Trouble Code (DTC) Detecting Criteria. >
TROUBLE SYMPTOM:
- Hard to start
- Erroneous idling
- Poor driving performance
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode < Ref. to
OPERATION , Clear Memory Mode. > and Inspection Mode < Ref. to
PROCEDURE , Inspection Mode. >.

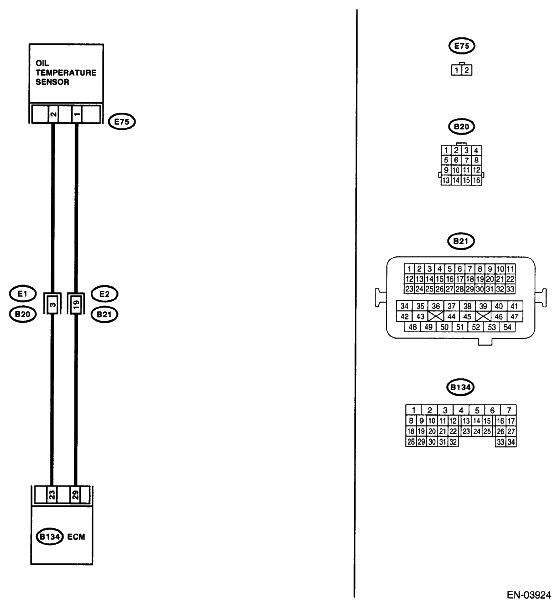

WIRING DIAGRAM:
DTC P0196 ENGINE OIL TEMPERATURE SENSOR CIRCUIT RANGE/PERFORMANCE - DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
| 1 CHECK FOR ANY OTHER DTC ON DISPLAY. | Is any other DTC displayed? | Check DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to
LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
NOTE:
In this case, it is not necessary to inspect DTC P0196.
|
Replace the engine oil temperature sensor. < Ref. to OIL TEMPERATURE SENSOR . > |
