Fuel Tank

WARNING: This page is about a different car, the 2006 Subaru Outback. However, it is still accessible from the selected car via links, so may be relevant.

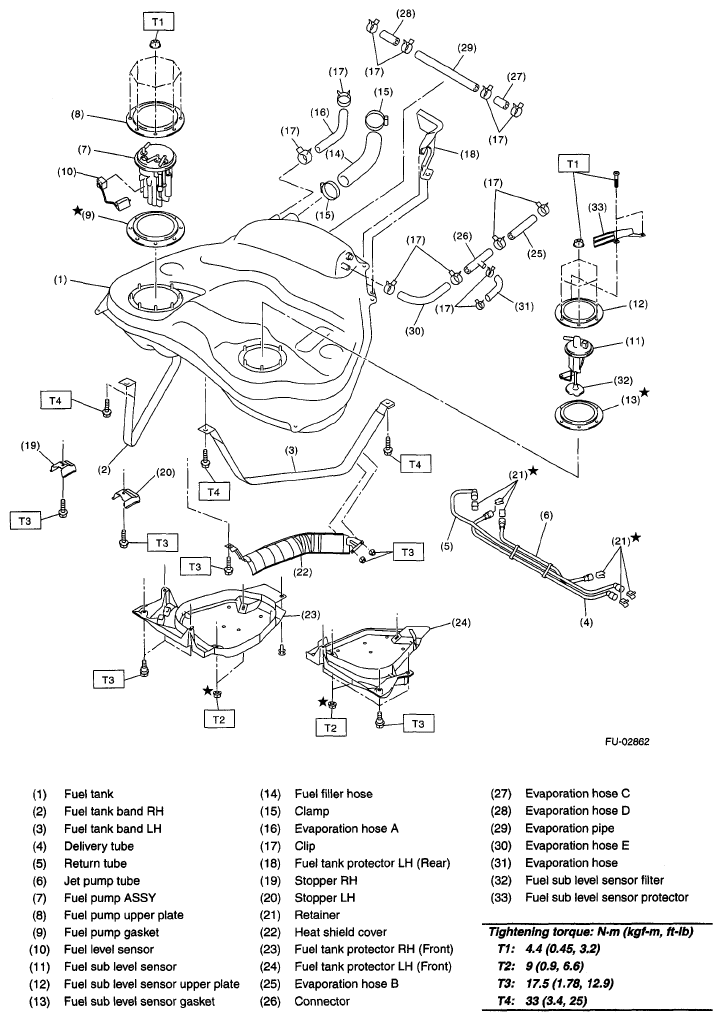

Fig 1: Fuel Tank Components With Torque Specifications
G05018396
