Section 59 (Fuel Injection (Fuel Systems) (H6DO))
>>
General Description
>>
Components With Torque Specifications
>>
Fuel Injector
Fuel Injector
WARNING:
This page is about a different car, the 2006 Subaru Outback. However, it is still accessible from the selected car via links, so may be relevant.

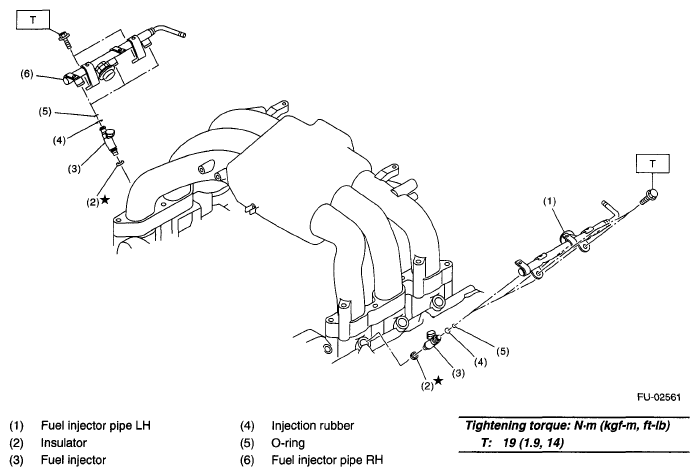

Fig 1: Fuel Injector Components With Torque Specifications
