List Of Self-Diagnosis Mode Operation
List Of Self-Diagnosis Mode Operation

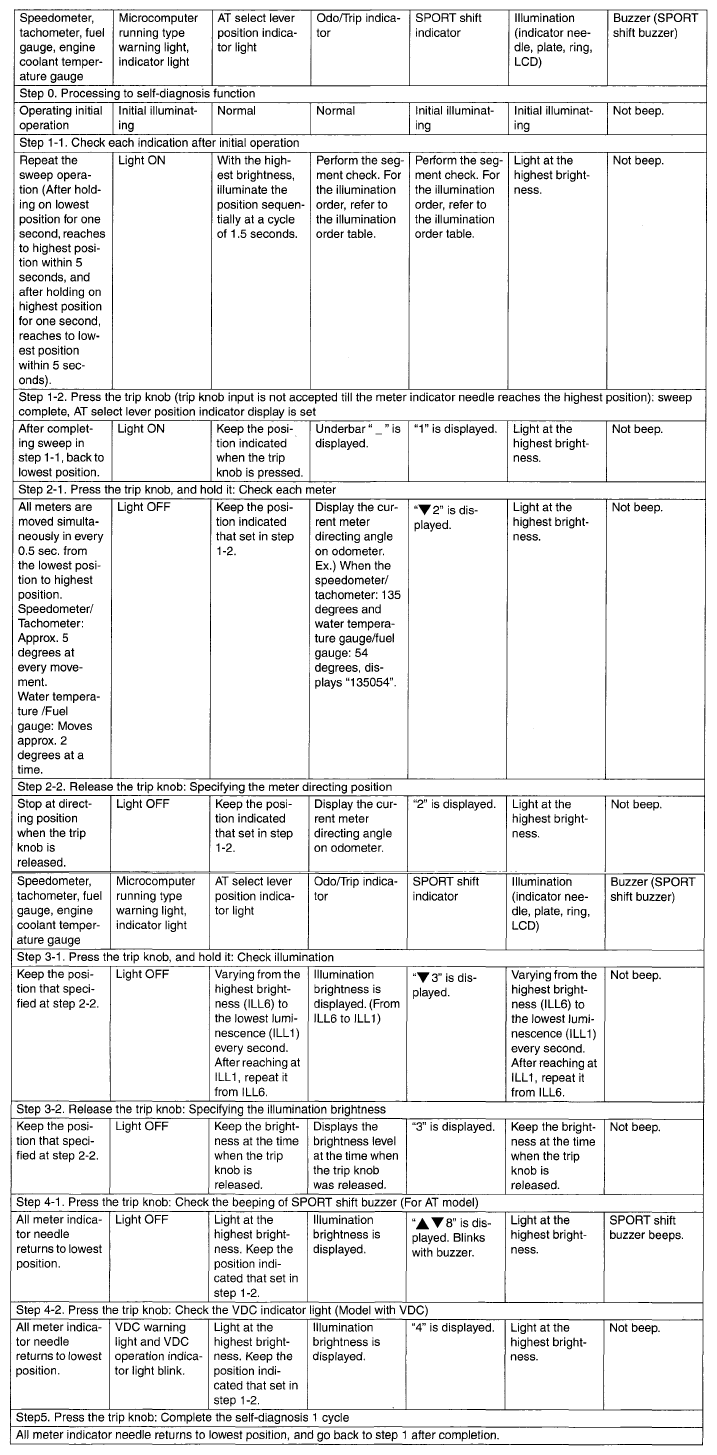

Fig 1: Self-Diagnosis Mode Operation List
Illuminating order table

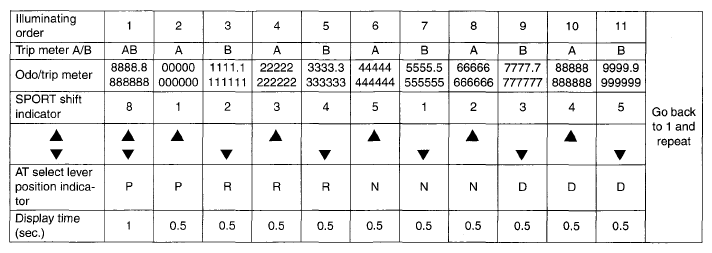

Fig 2: Illuminating Order Chart
