TPM Control System: Wiring Diagram

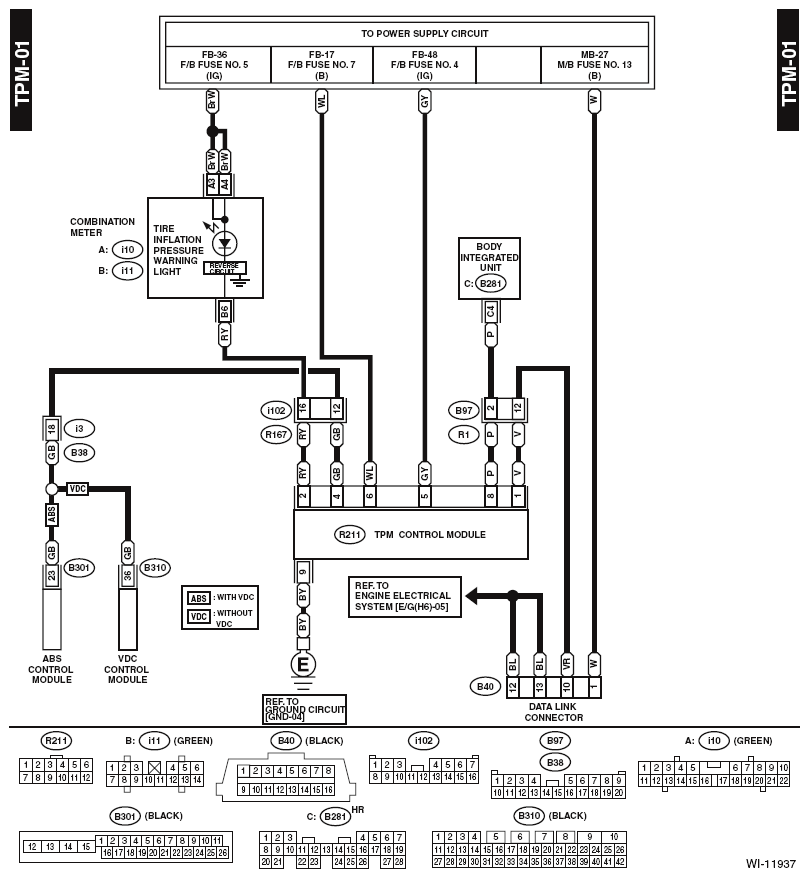

Fig 1: TPM Control System Wiring Diagram

G11894529

Courtesy of SUBARU OF AMERICA, INC.
