Stop Light System: Wiring Diagram

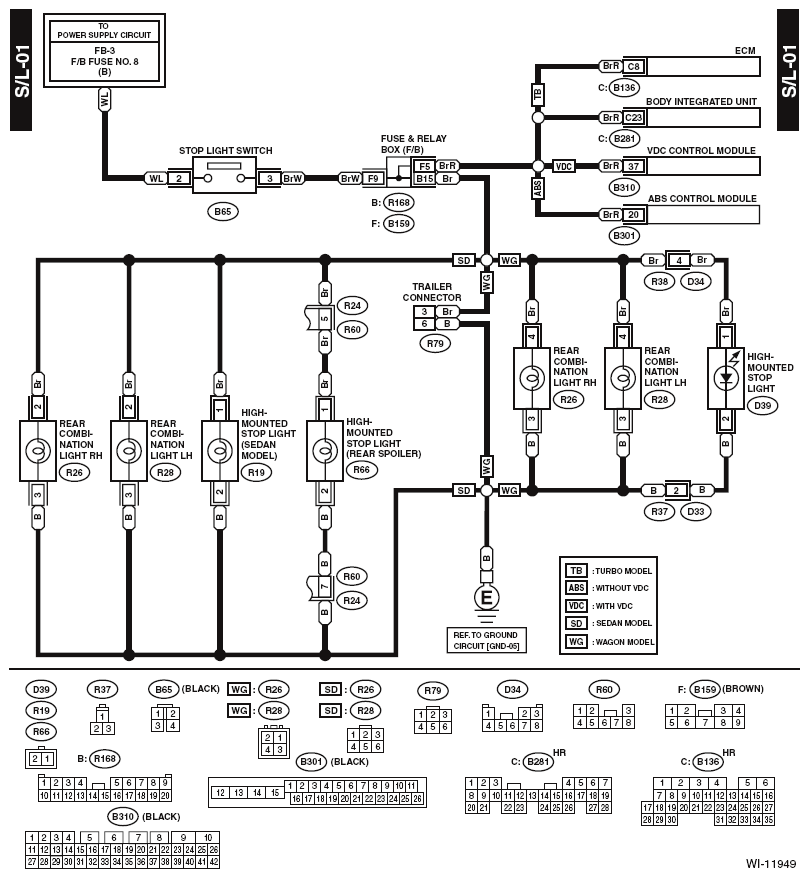

Fig 1: Stop Light System Wiring Diagram

G11894550

Courtesy of SUBARU OF AMERICA, INC.
