Speedmeter System: Wiring Diagram

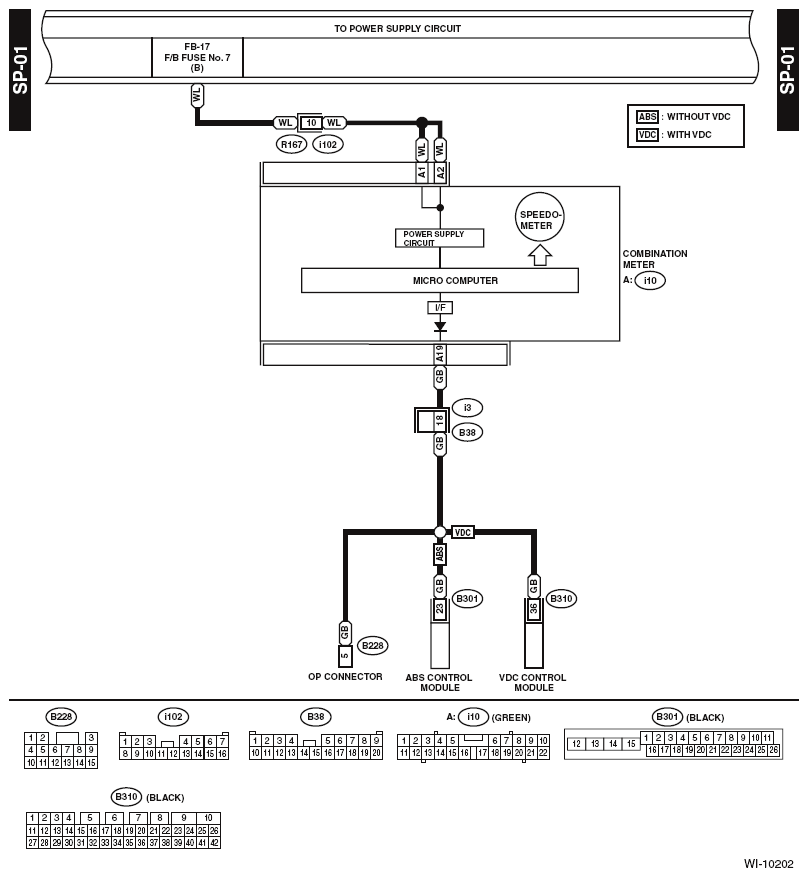

Fig 1: Speedmeter System Wiring Diagram

G11894583

Courtesy of SUBARU OF AMERICA, INC.
