Rear Defogger System: Wiring Diagram

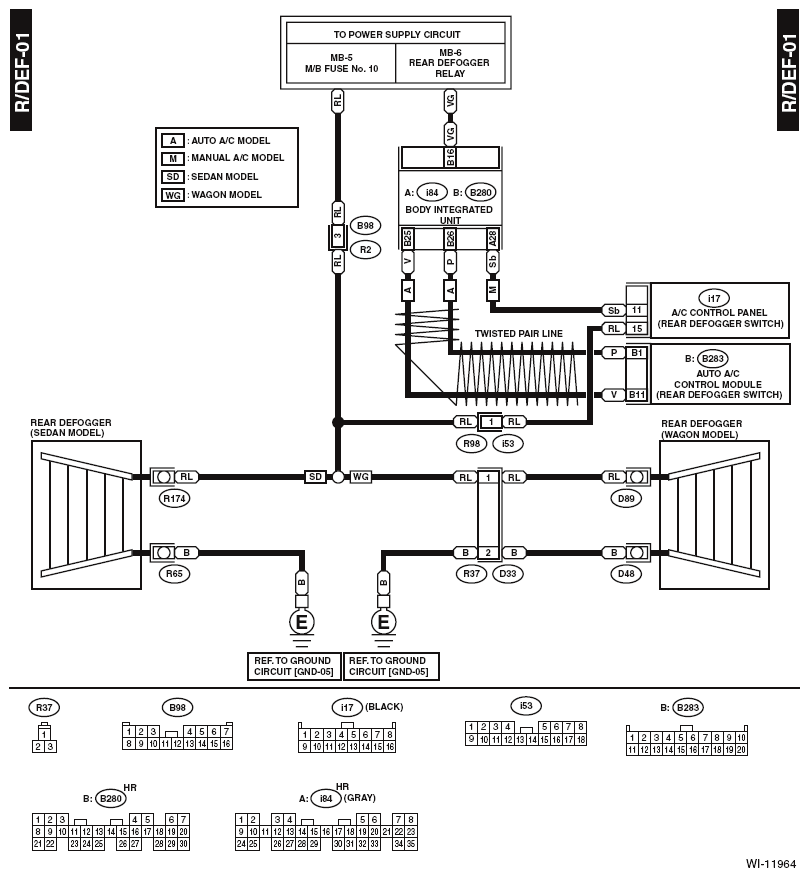

Fig 1: Rear Defogger System Wiring Diagram

G11894578

Courtesy of SUBARU OF AMERICA, INC.
