OP Connector System: Wiring Diagram

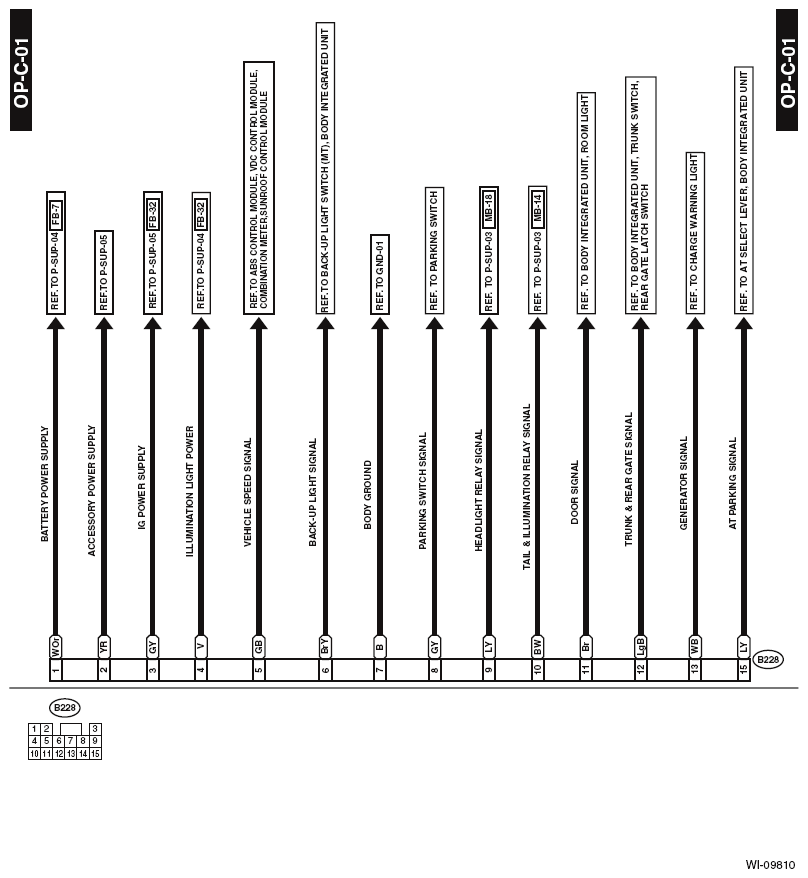

Fig 1: OP Connector System Wiring Diagram

G11894571

Courtesy of SUBARU OF AMERICA, INC.
