Headlight System: Wiring Diagram

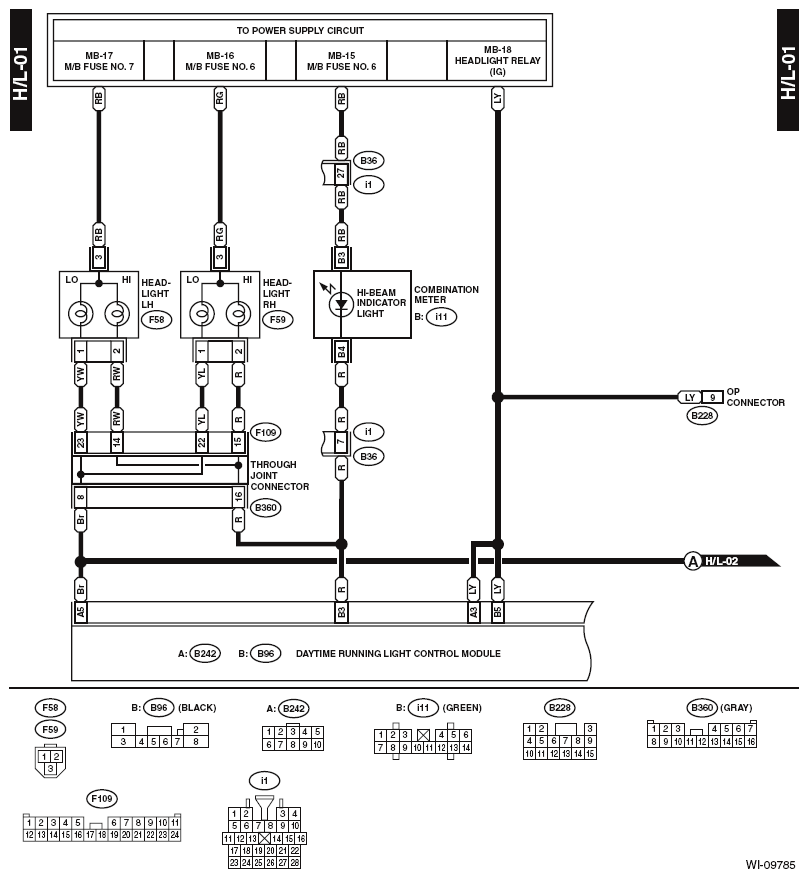

Fig 1: Headlight System Wiring Diagram (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

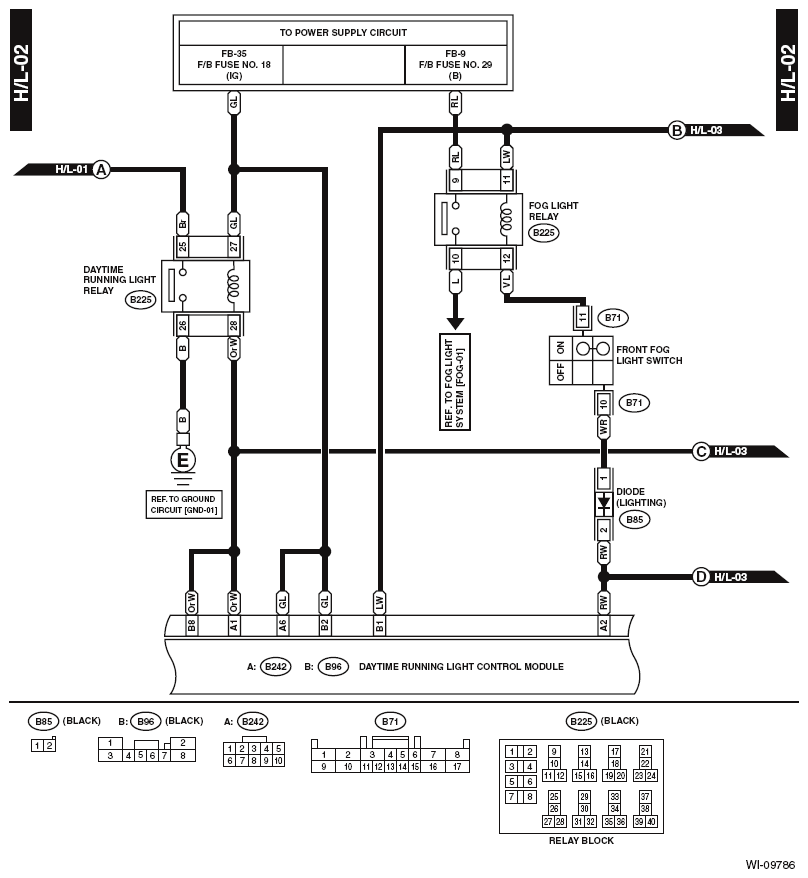

Fig 2: Headlight System Wiring Diagram (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

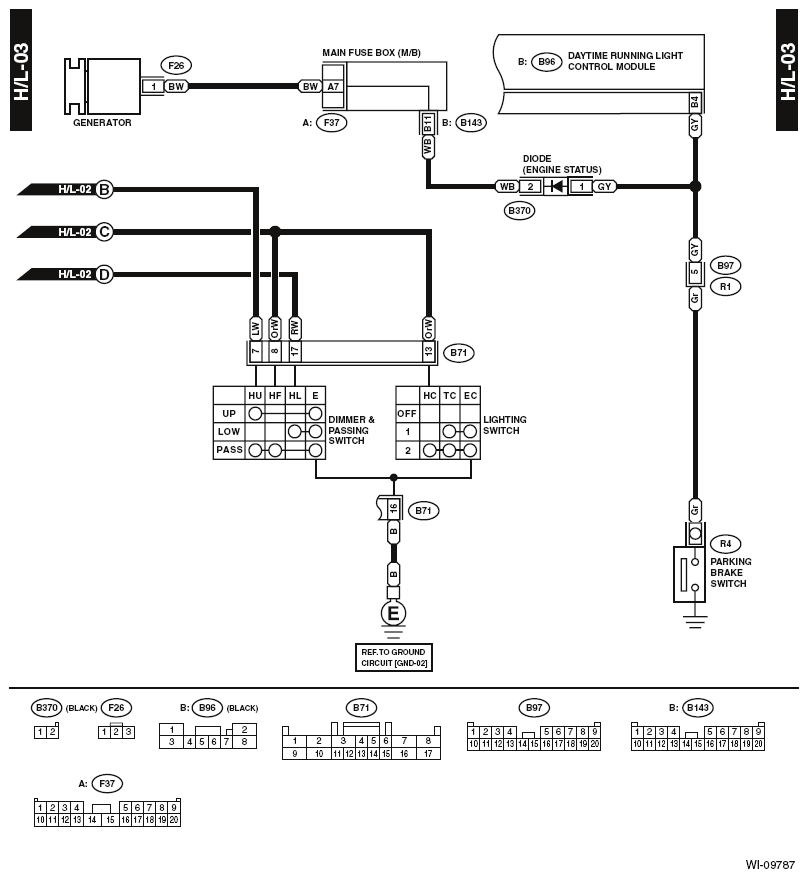

Fig 3: Headlight System Wiring Diagram (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
