Ground Circuit: Wiring Diagram

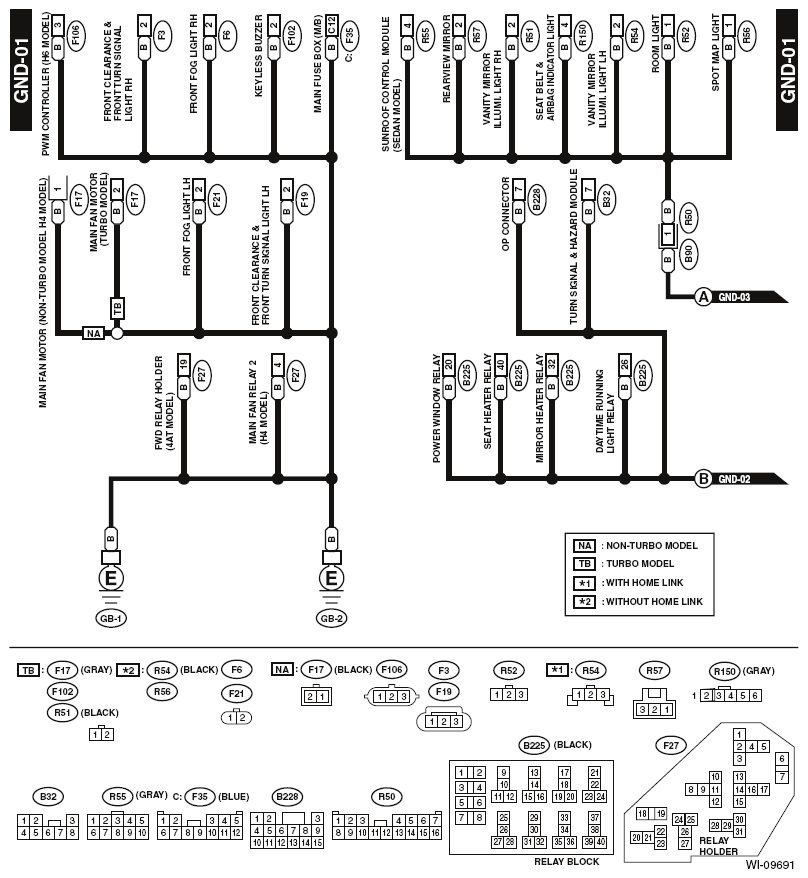

Fig 1: Ground Wiring Diagram (1 Of 10)

G11894451

Courtesy of SUBARU OF AMERICA, INC.

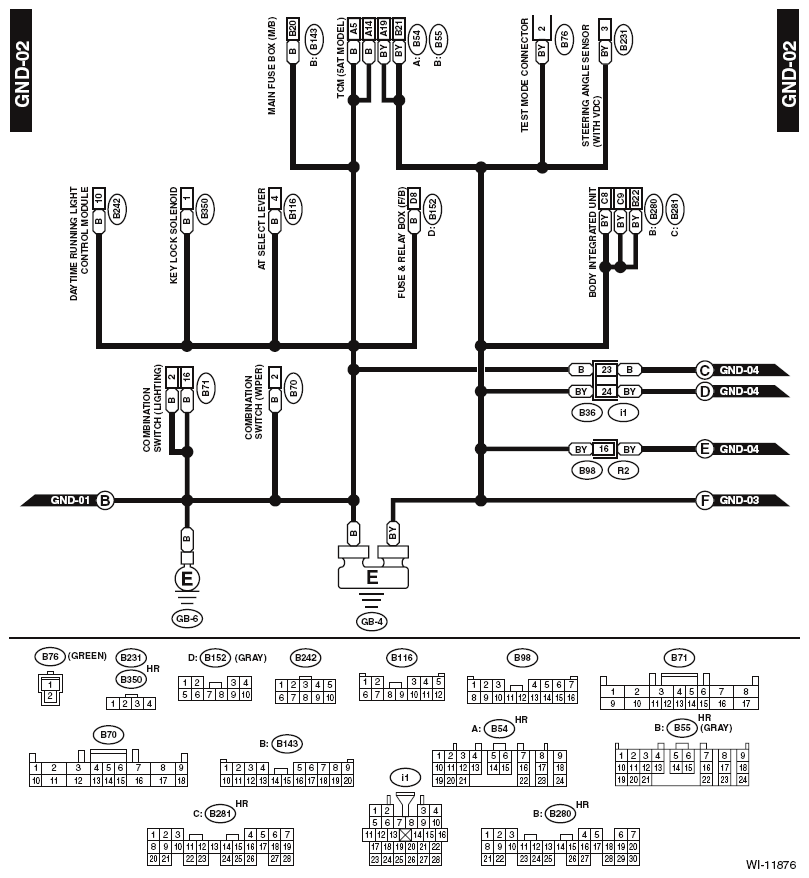

Fig 2: Ground Wiring Diagram (2 Of 10)

G11894452

Courtesy of SUBARU OF AMERICA, INC.

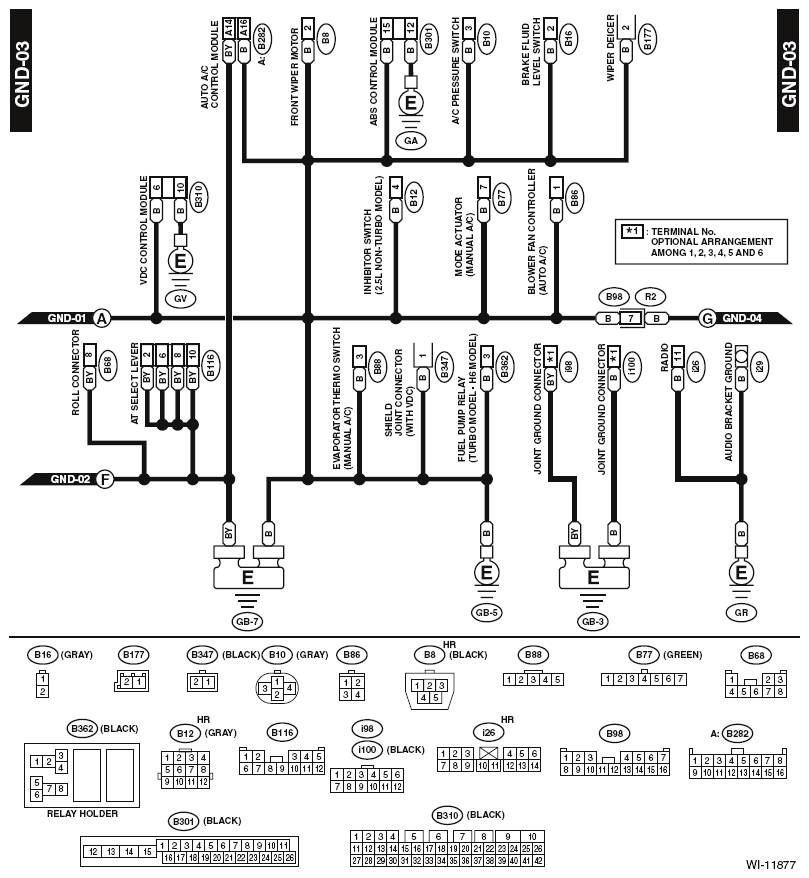

Fig 3: Ground Wiring Diagram (3 Of 10)

G11894453

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Ground Wiring Diagram (4 Of 10)

G11894454

Courtesy of SUBARU OF AMERICA, INC.

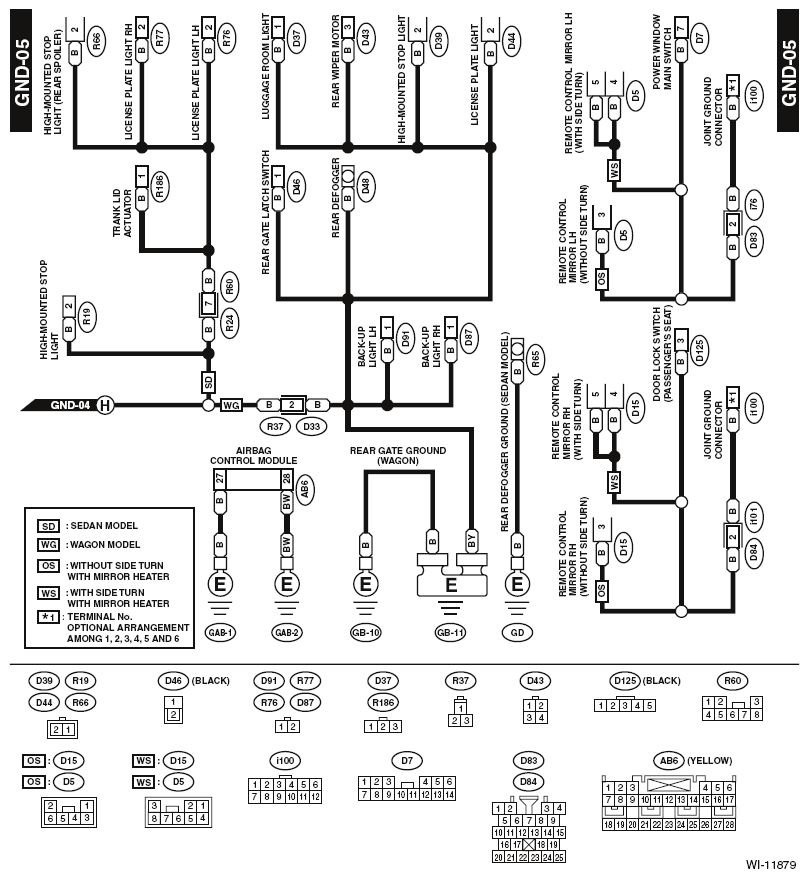

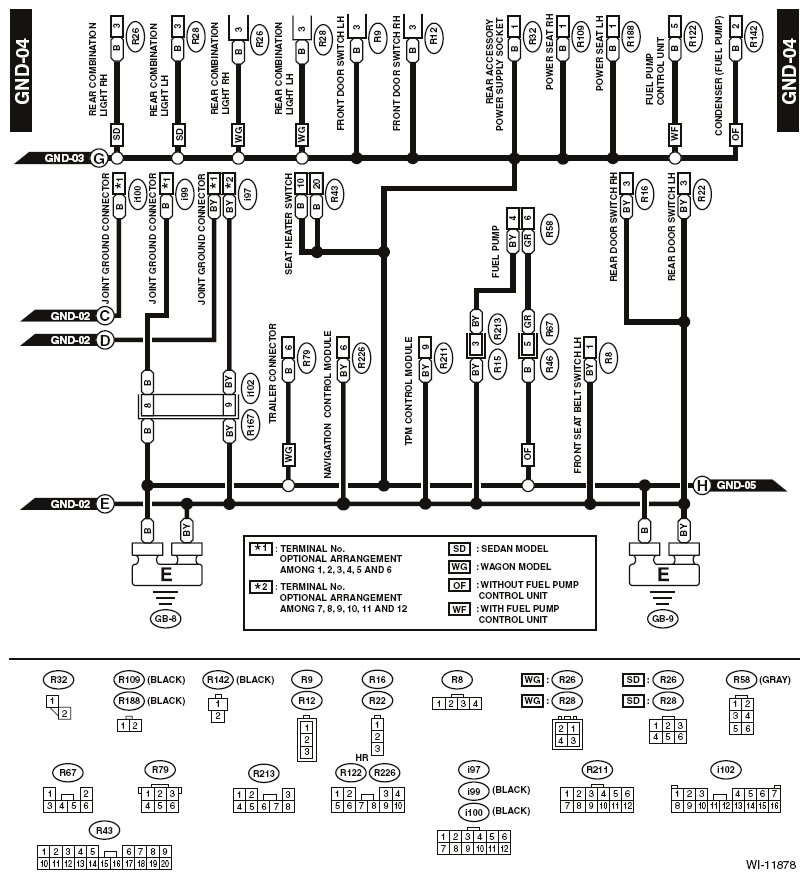

Fig 5: Ground Wiring Diagram (5 Of 10)

G11894455

Courtesy of SUBARU OF AMERICA, INC.

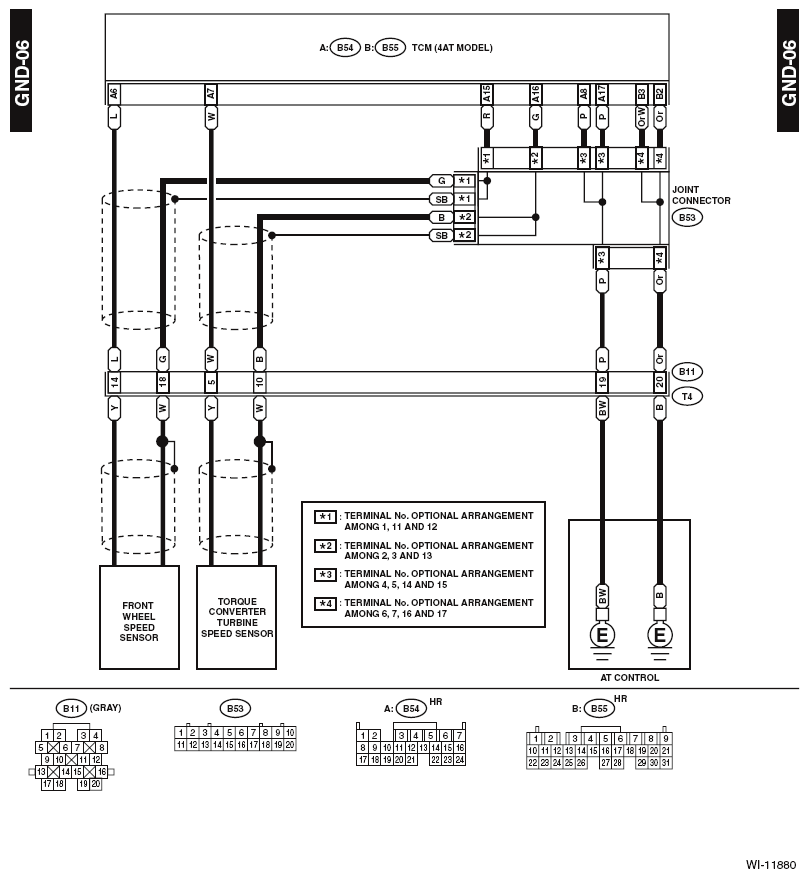

Fig 6: Ground Wiring Diagram (6 Of 10)

G11894456

Courtesy of SUBARU OF AMERICA, INC.

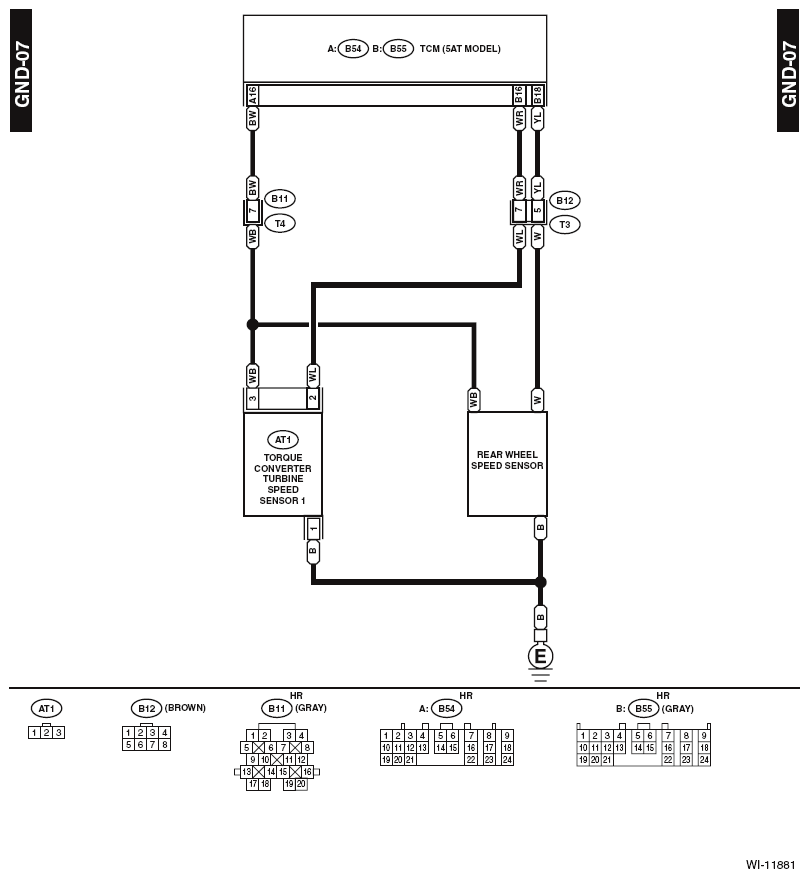

Fig 7: Ground Wiring Diagram (7 Of 10)

G11894457

Courtesy of SUBARU OF AMERICA, INC.

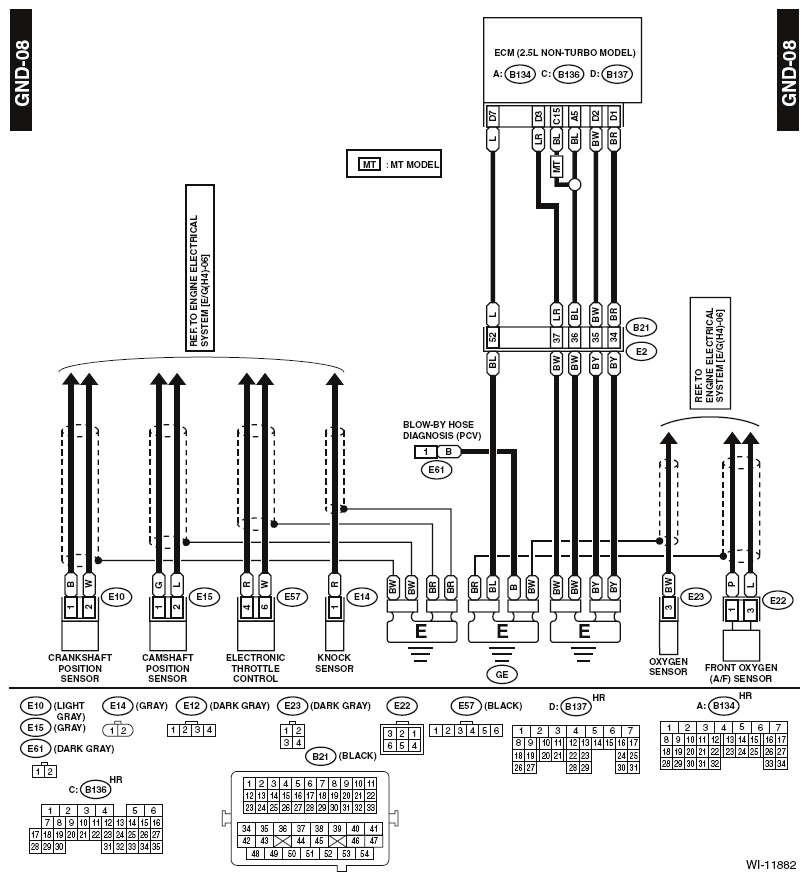

Fig 8: Ground Wiring Diagram (8 Of 10)

G11894458

Courtesy of SUBARU OF AMERICA, INC.

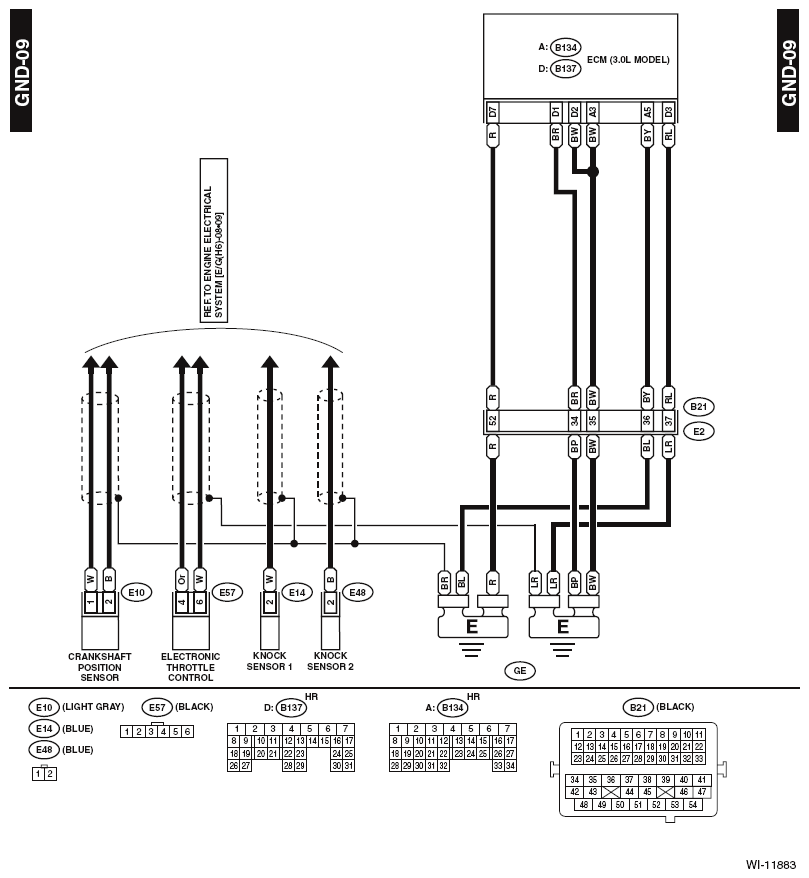

Fig 9: Ground Wiring Diagram (9 Of 10)

G11894459

Courtesy of SUBARU OF AMERICA, INC.

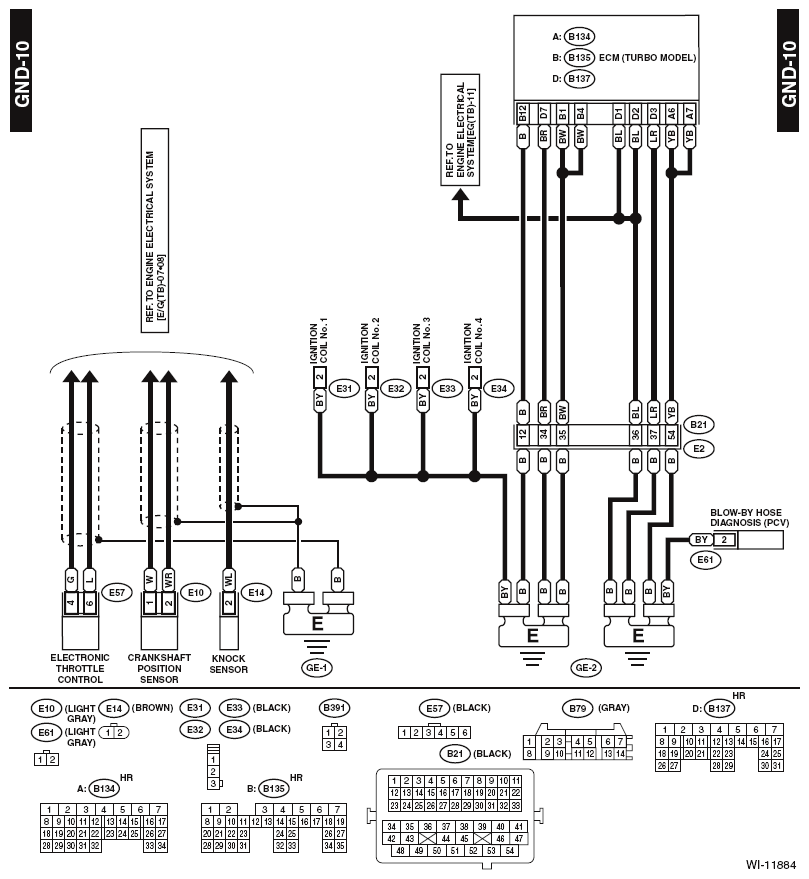

Fig 10: Ground Wiring Diagram (10 Of 10)

G11894460

Courtesy of SUBARU OF AMERICA, INC.
