Front Fog Light System: Wiring Diagram

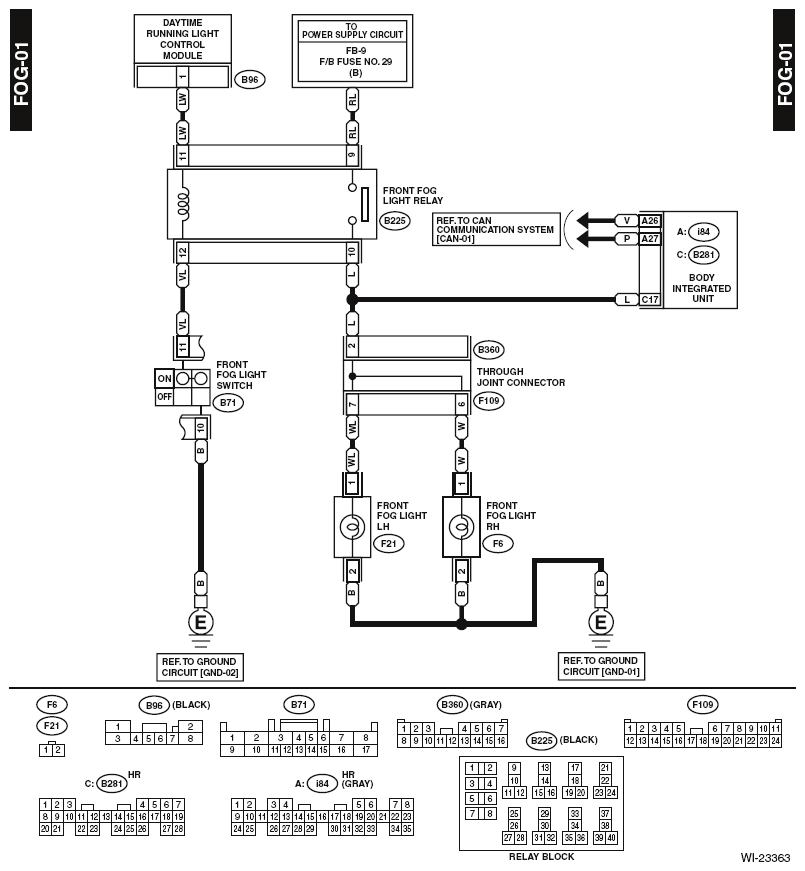

Fig 1: Front Fog Light System Wiring Diagram

G11894548

Courtesy of SUBARU OF AMERICA, INC.
