Front Accessory Power Supply Socket System: Wiring Diagram

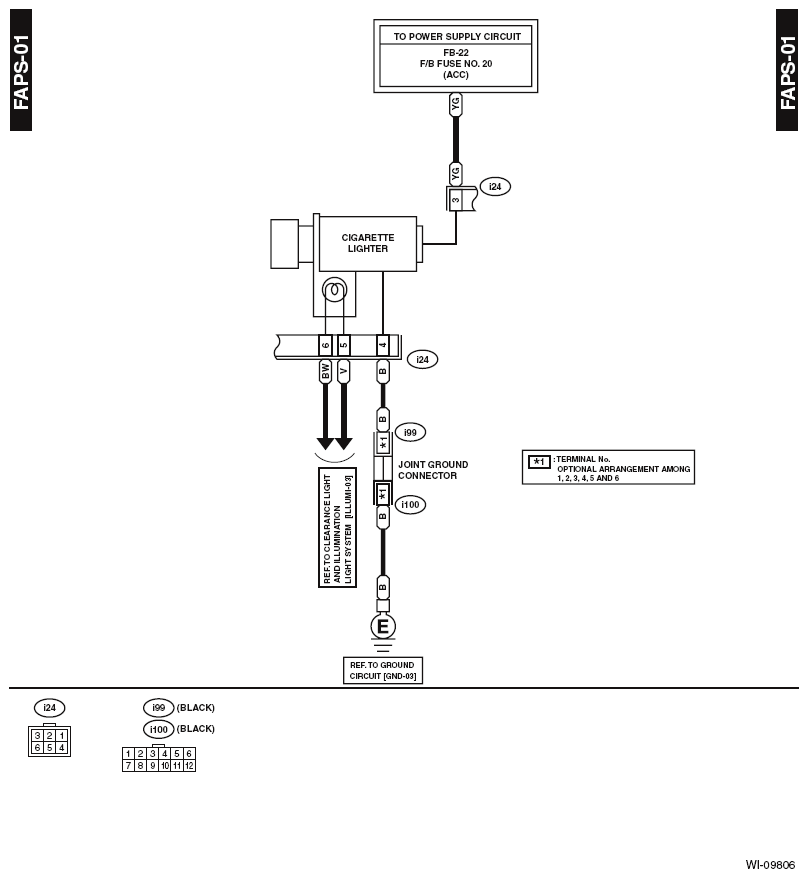

Fig 1: Front Accessory Power Supply Socket System Wiring Diagram

G11894567

Courtesy of SUBARU OF AMERICA, INC.
