2.5 L (Turbo) Model

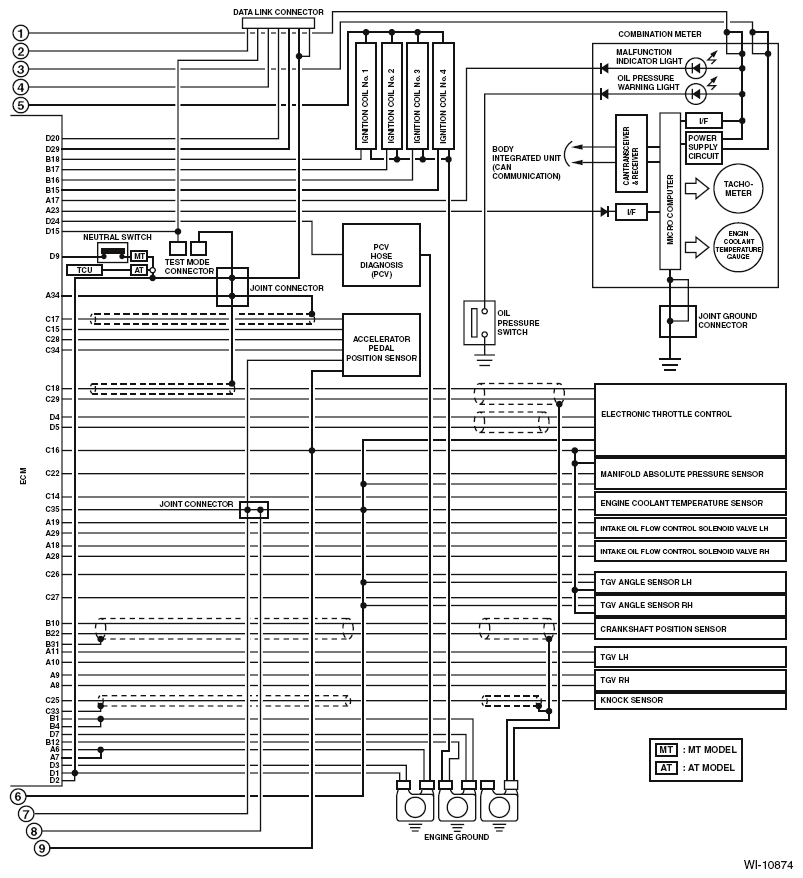

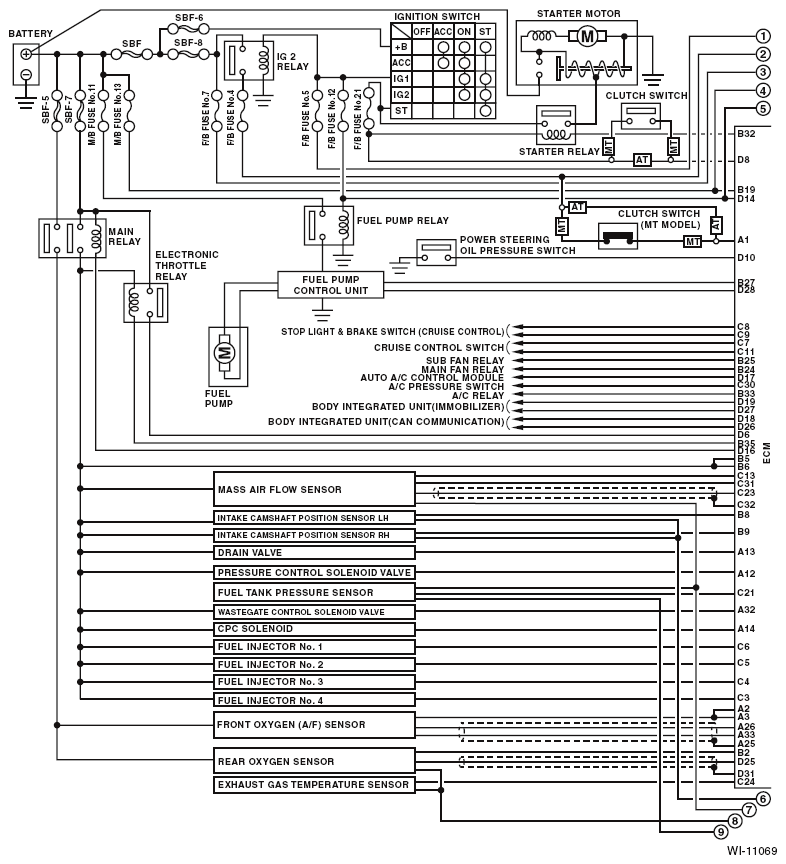

Fig 1: Engine Electrical System Wiring Diagram - 2.5 L Turbo Model (1 Of 13)

Courtesy of SUBARU OF AMERICA, INC.

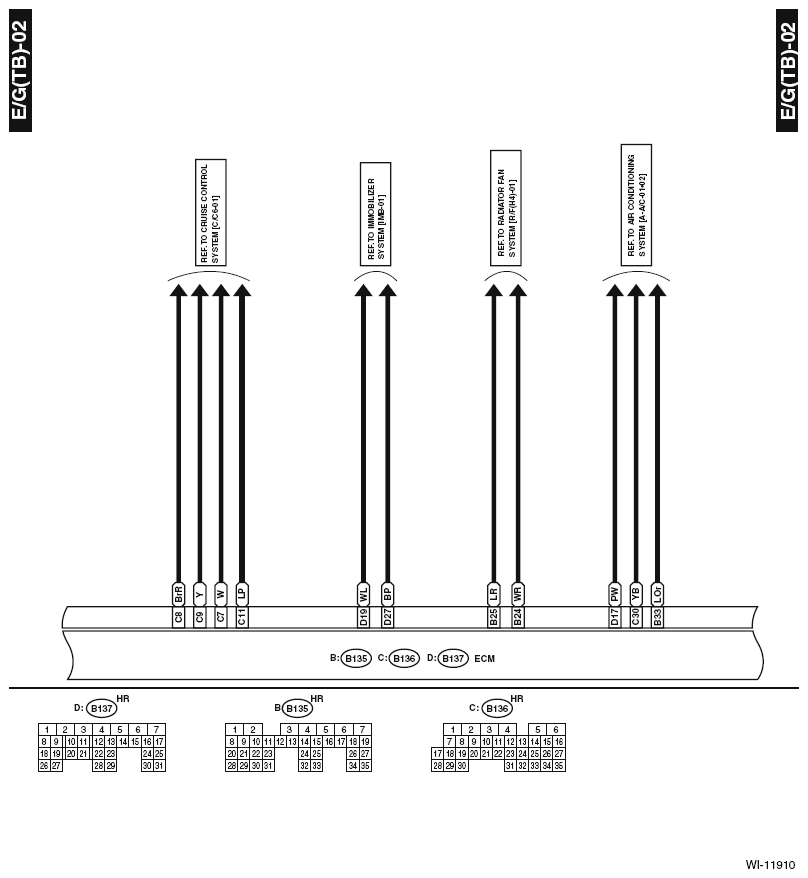

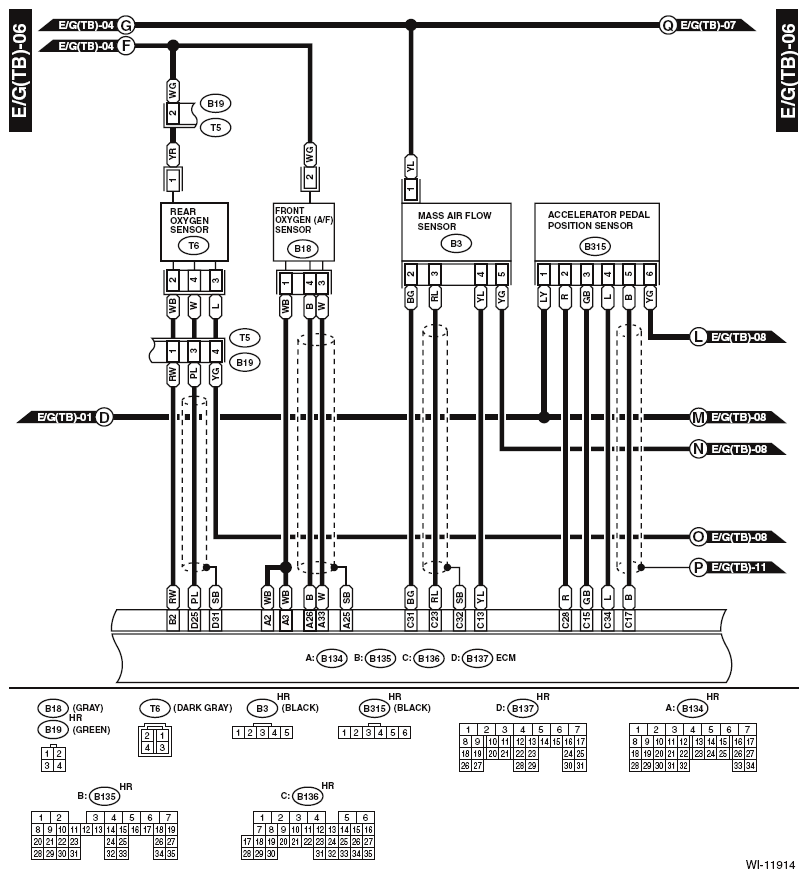

Fig 2: Engine Electrical System Wiring Diagram - 2.5 L Turbo Model (2 Of 13)

Courtesy of SUBARU OF AMERICA, INC.

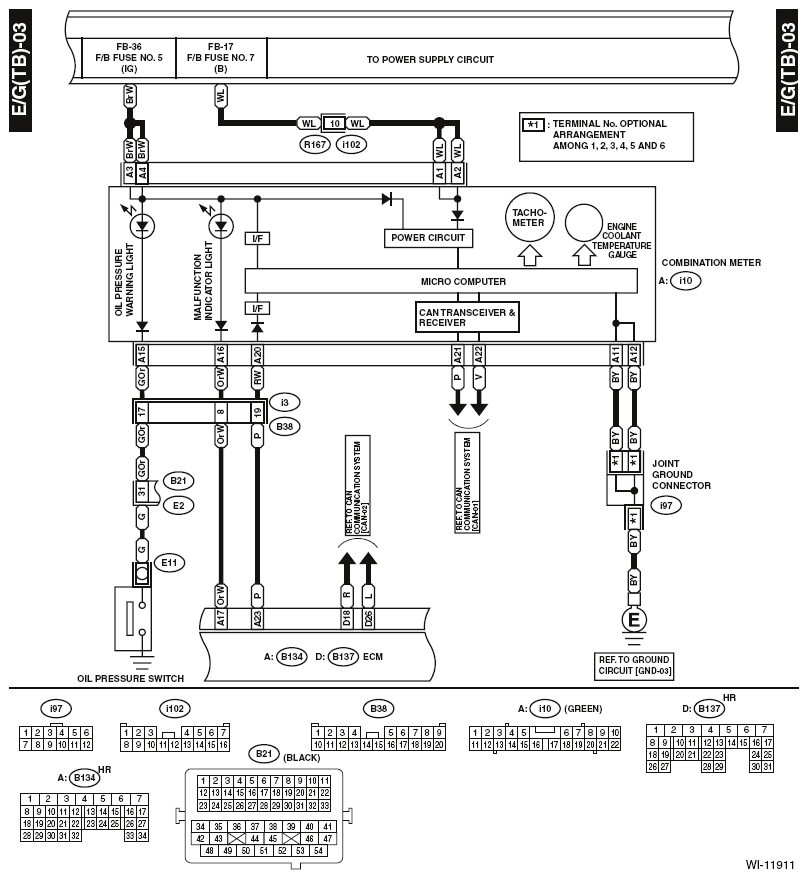

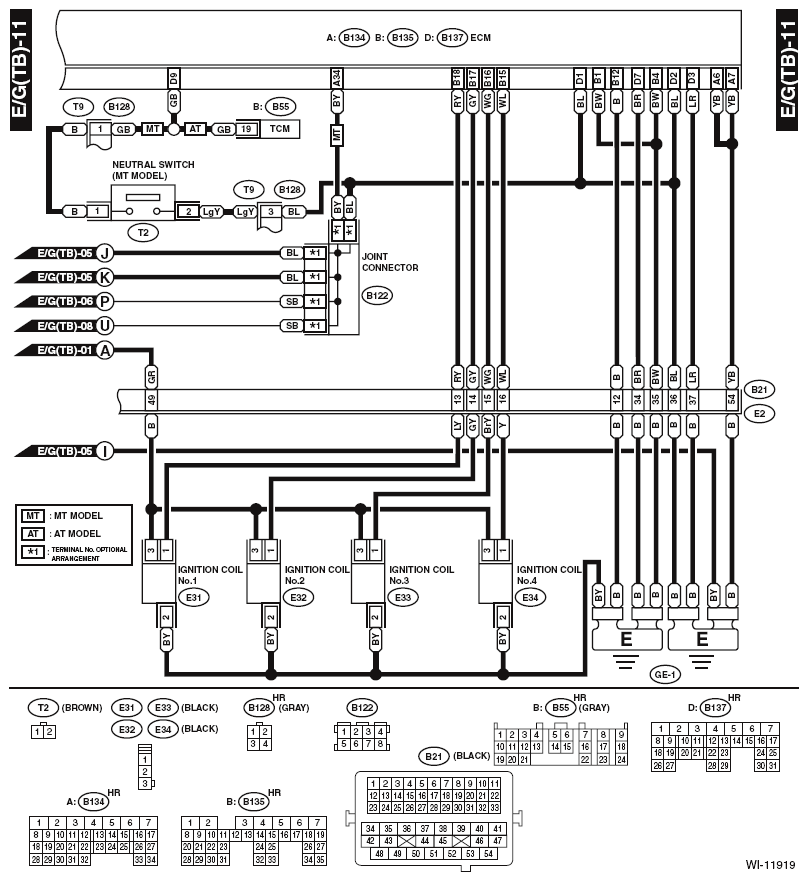

Fig 3: Engine Electrical System Wiring Diagram - 2.5 L Turbo Model (3 Of 13)

Courtesy of SUBARU OF AMERICA, INC.

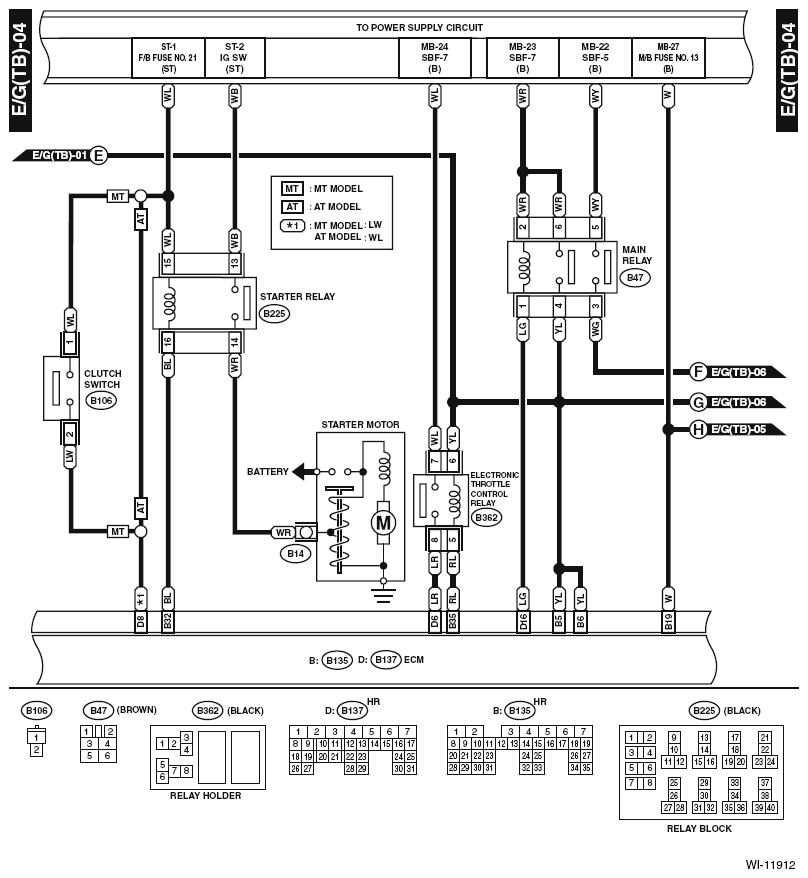

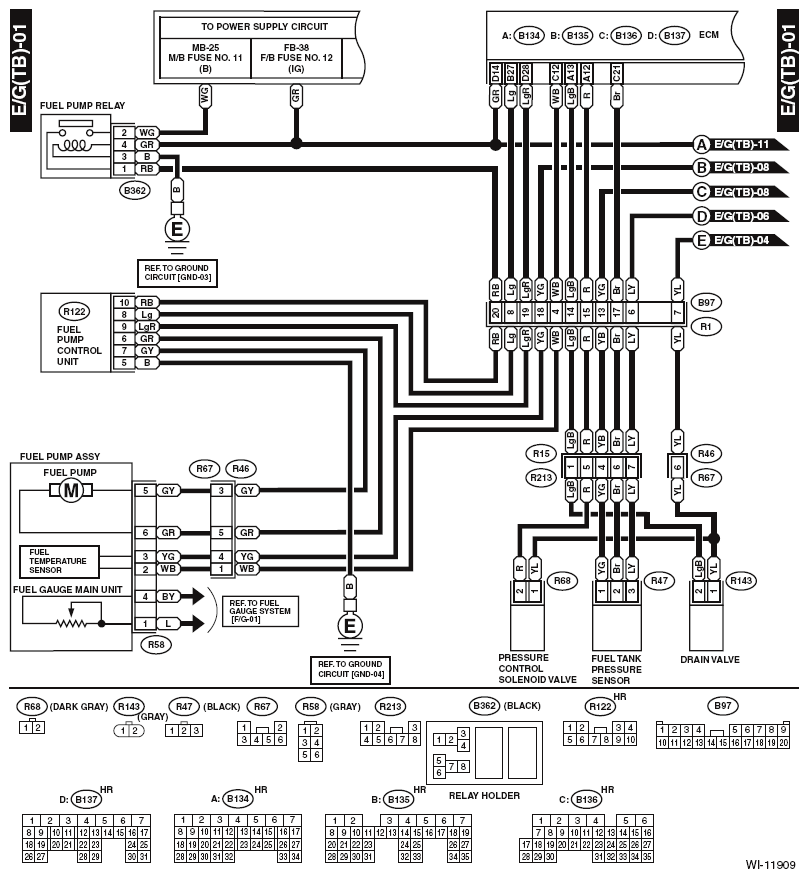

Fig 4: Engine Electrical System Wiring Diagram - 2.5 L Turbo Model (4 Of 13)

Courtesy of SUBARU OF AMERICA, INC.

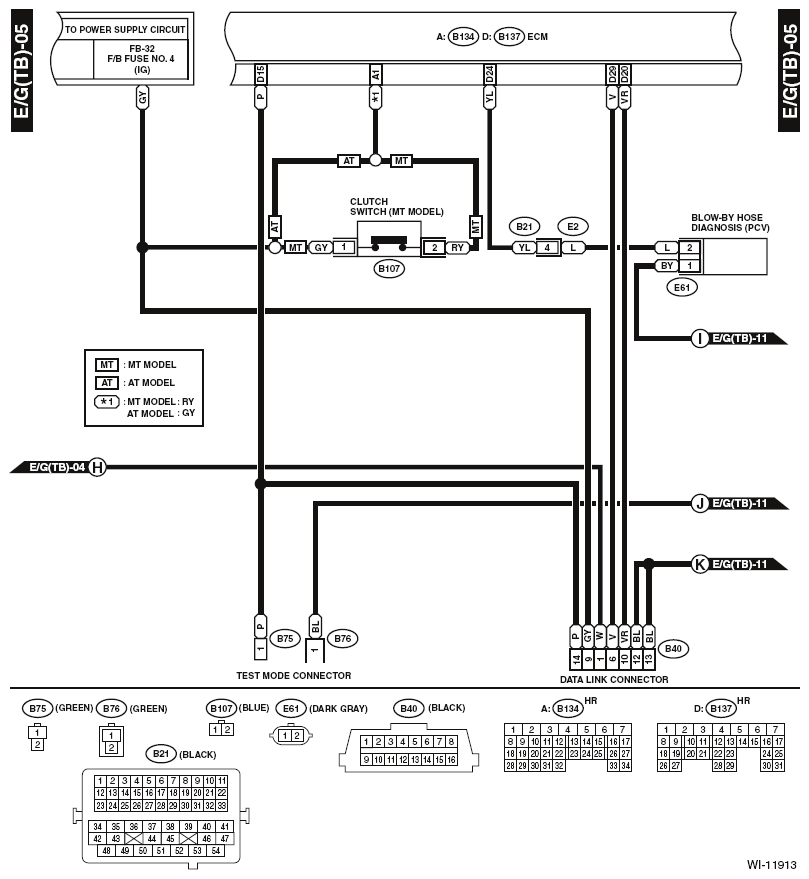

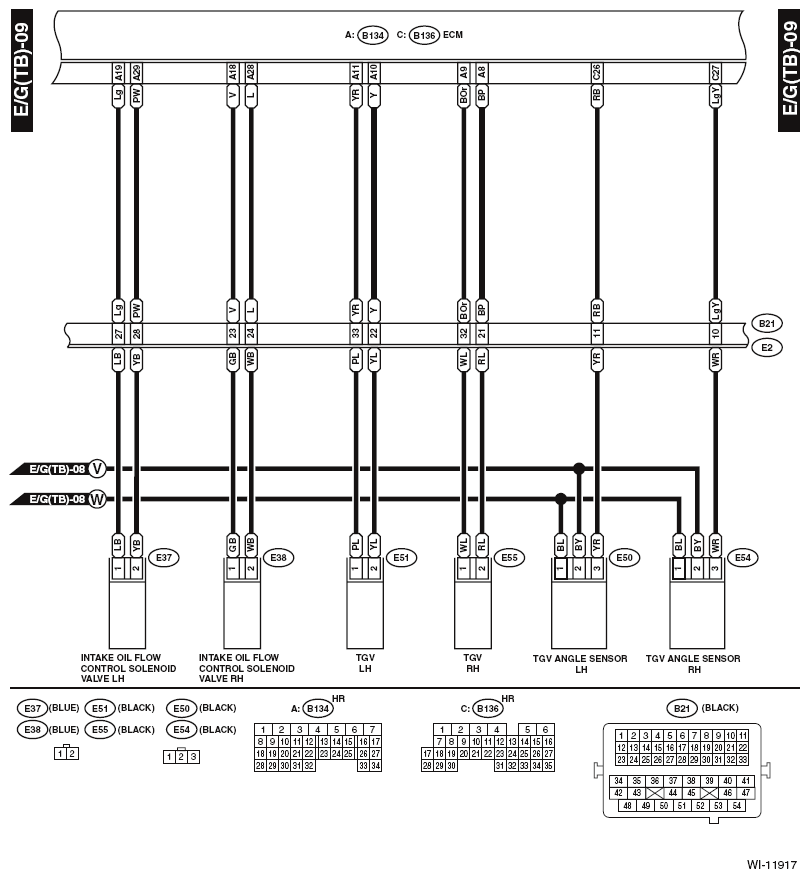

Fig 5: Engine Electrical System Wiring Diagram - 2.5 L Turbo Model (5 Of 13)

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Engine Electrical System Wiring Diagram - 2.5 L Turbo Model (6 Of 13)

Courtesy of SUBARU OF AMERICA, INC.

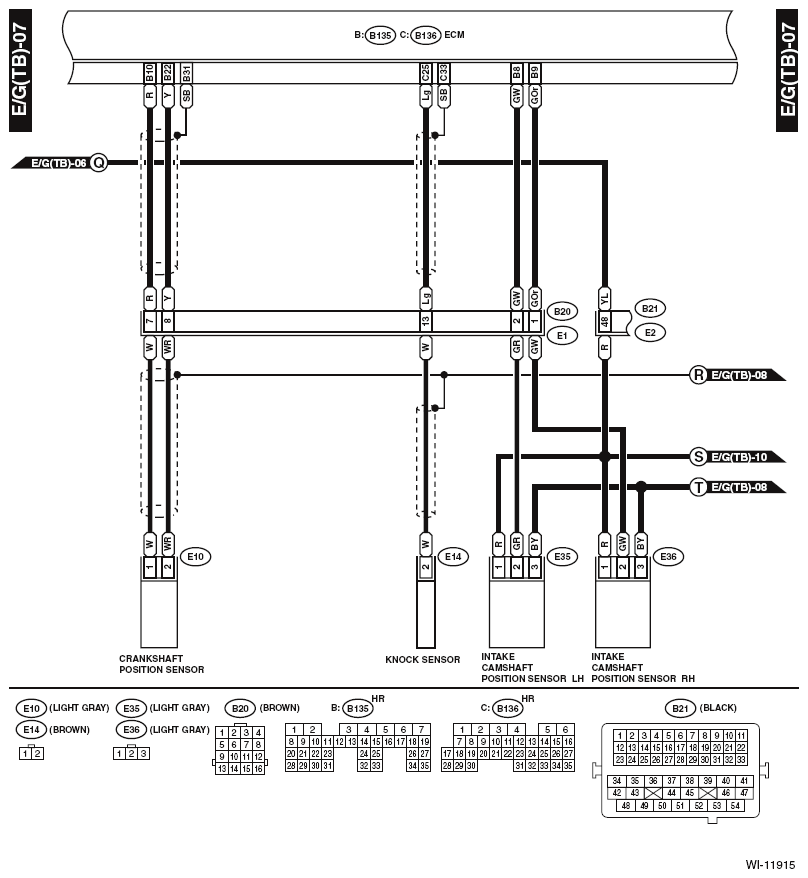

Fig 7: Engine Electrical System Wiring Diagram - 2.5 L Turbo Model (7 Of 13)

Courtesy of SUBARU OF AMERICA, INC.

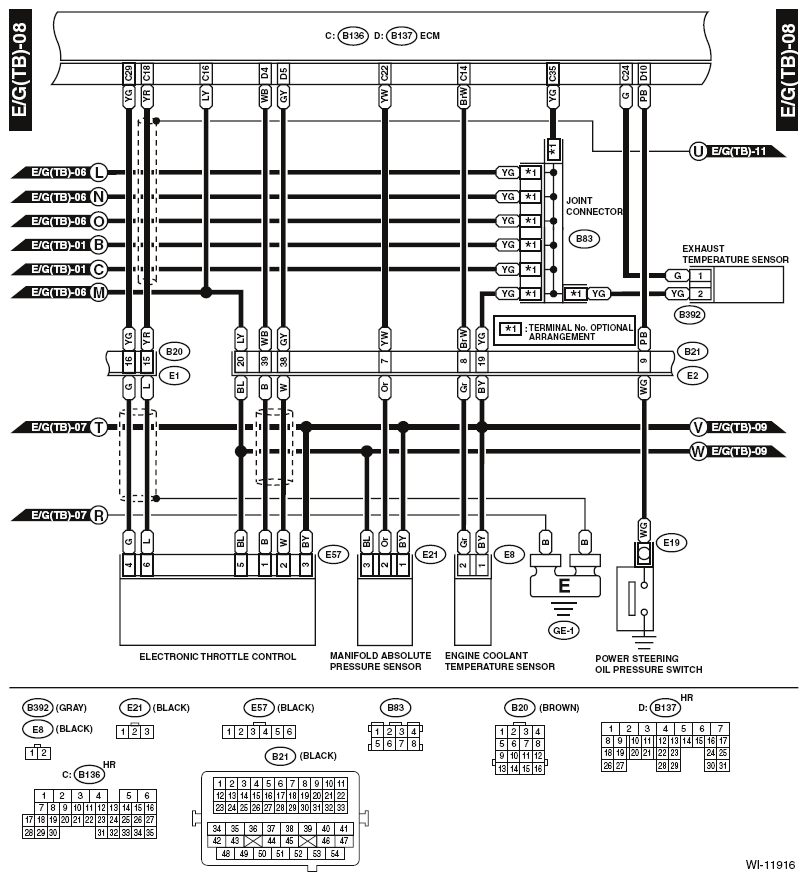

Fig 8: Engine Electrical System Wiring Diagram - 2.5 L Turbo Model (8 Of 13)

Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Engine Electrical System Wiring Diagram - 2.5 L Turbo Model (9 Of 13)

Courtesy of SUBARU OF AMERICA, INC.

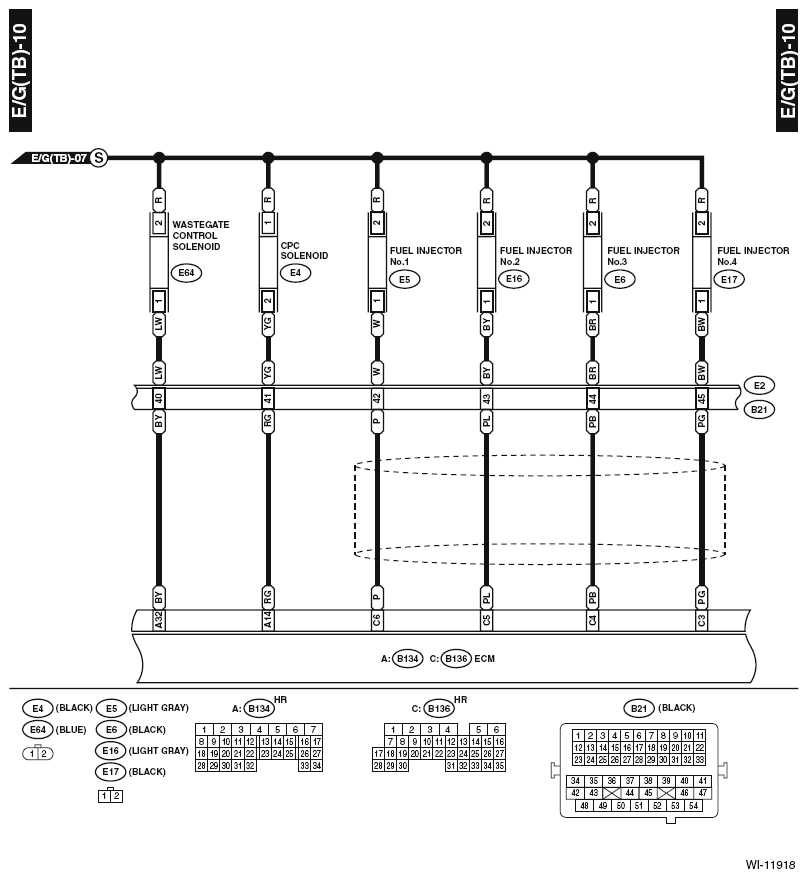

Fig 10: Engine Electrical System Wiring Diagram - 2.5 L Turbo Model (10 Of 13)

Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Engine Electrical System Wiring Diagram - 2.5 L Turbo Model (11 Of 13)

Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Engine Electrical System Wiring Diagram - 2.5 L Turbo Model (12 Of 13)

Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Engine Electrical System Wiring Diagram - 2.5 L Turbo Model (13 Of 13)

Courtesy of SUBARU OF AMERICA, INC.
