2.5 L (Non-Turbo) Model

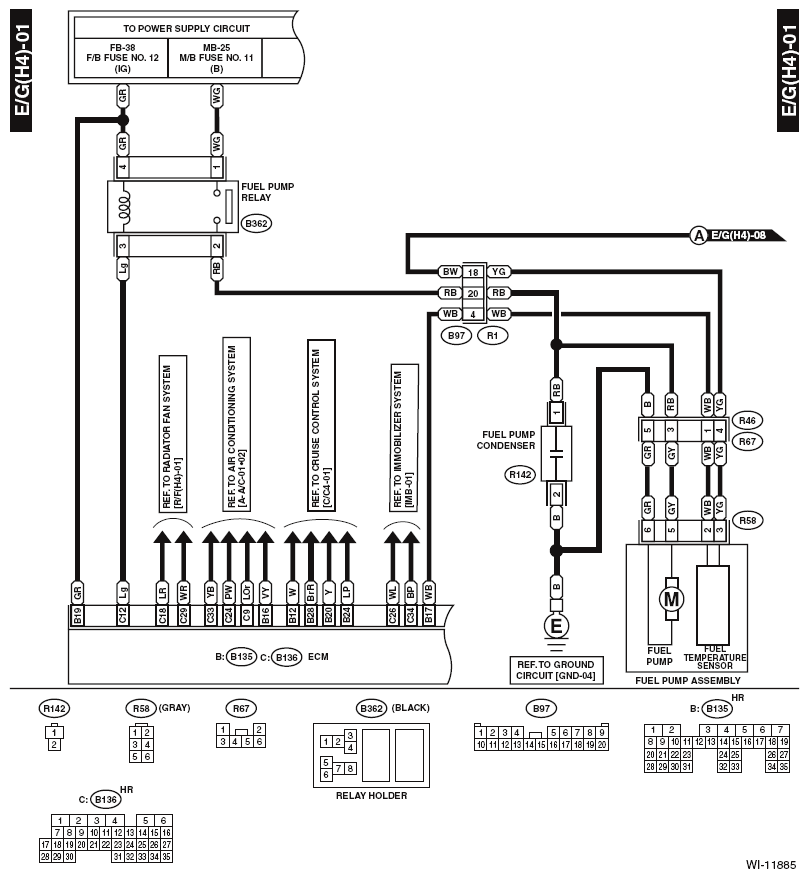

Fig 1: Engine Electrical System Wiring Diagram - 2.5 L Non-Turbo Model (1 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

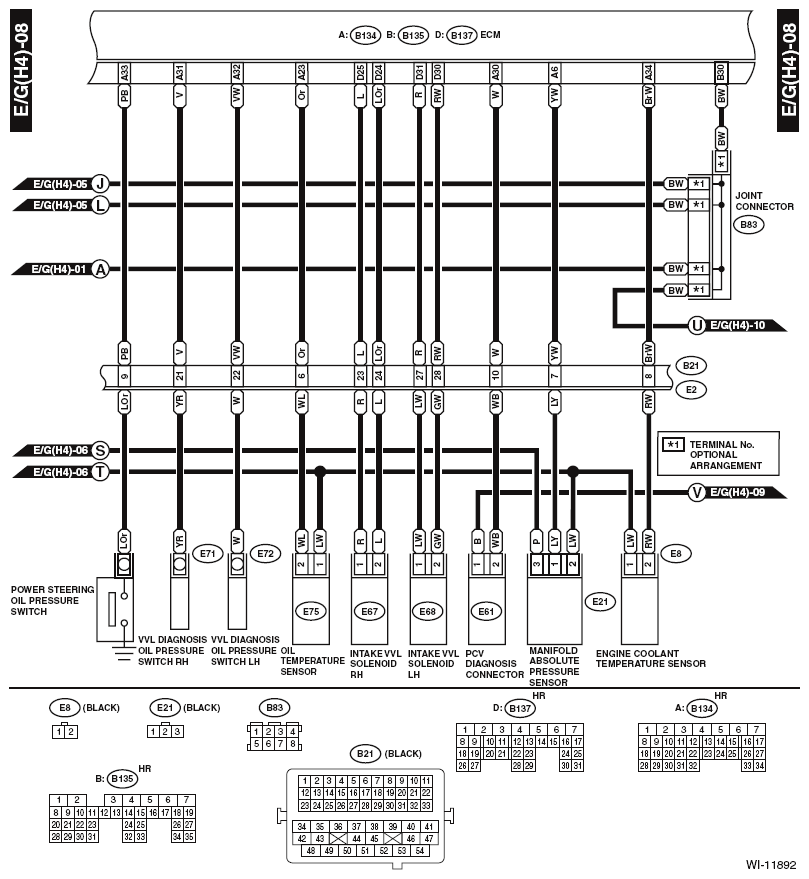

Fig 2: Engine Electrical System Wiring Diagram - 2.5 L Non-Turbo Model (2 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Engine Electrical System Wiring Diagram - 2.5 L Non-Turbo Model (3 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Engine Electrical System Wiring Diagram - 2.5 L Non-Turbo Model (4 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Engine Electrical System Wiring Diagram - 2.5 L Non-Turbo Model (5 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Engine Electrical System Wiring Diagram - 2.5 L Non-Turbo Model (6 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Engine Electrical System Wiring Diagram - 2.5 L Non-Turbo Model (7 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Engine Electrical System Wiring Diagram - 2.5 L Non-Turbo Model (8 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Engine Electrical System Wiring Diagram - 2.5 L Non-Turbo Model (9 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Engine Electrical System Wiring Diagram - 2.5 L Non-Turbo Model (10 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Engine Electrical System Wiring Diagram - 2.5 L Non-Turbo Model (11 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Engine Electrical System Wiring Diagram - 2.5 L Non-Turbo Model (12 Of 12)

Courtesy of SUBARU OF AMERICA, INC.
