Clock System: Wiring Diagram

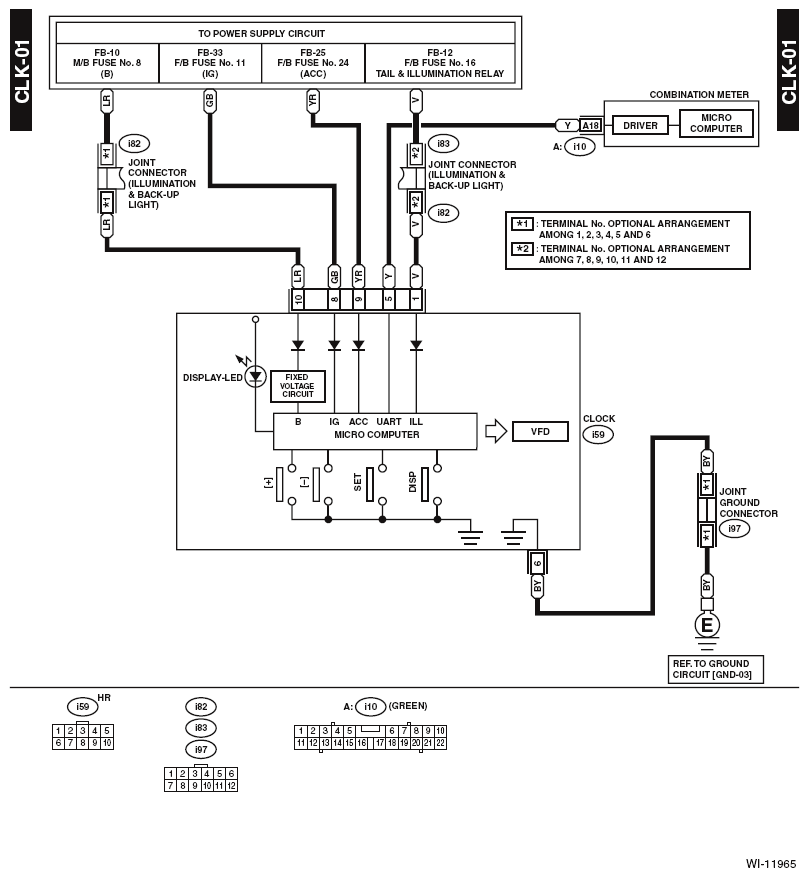

Fig 1: Clock System Wiring Diagram

G11894584

Courtesy of SUBARU OF AMERICA, INC.
