CAN Communication System: Wiring Diagram

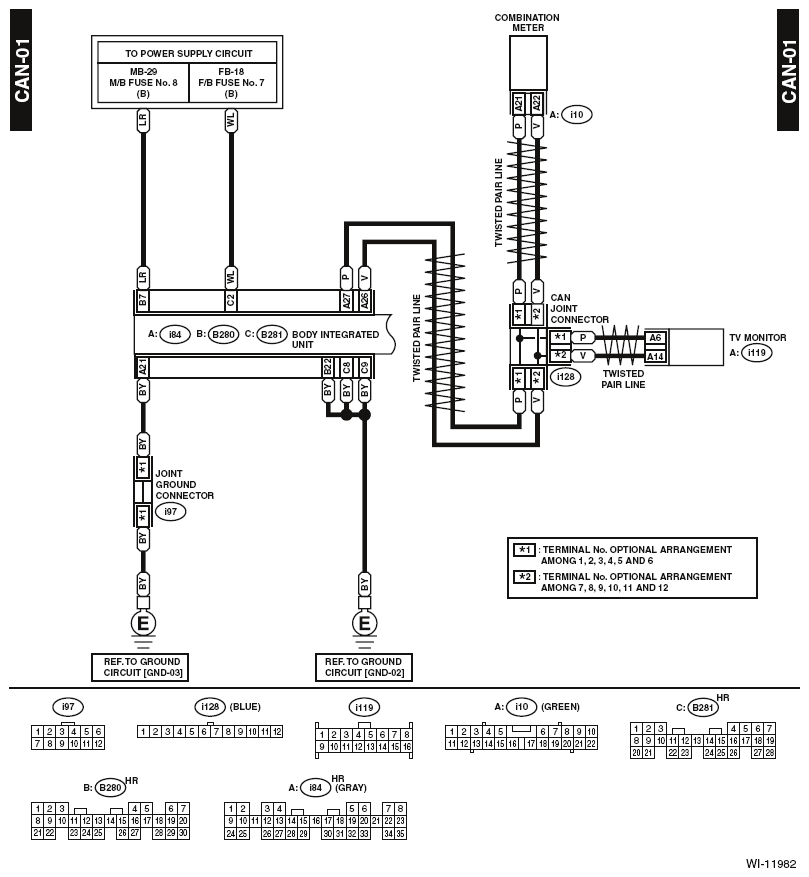

Fig 1: CAN Communication System Wiring Diagram (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

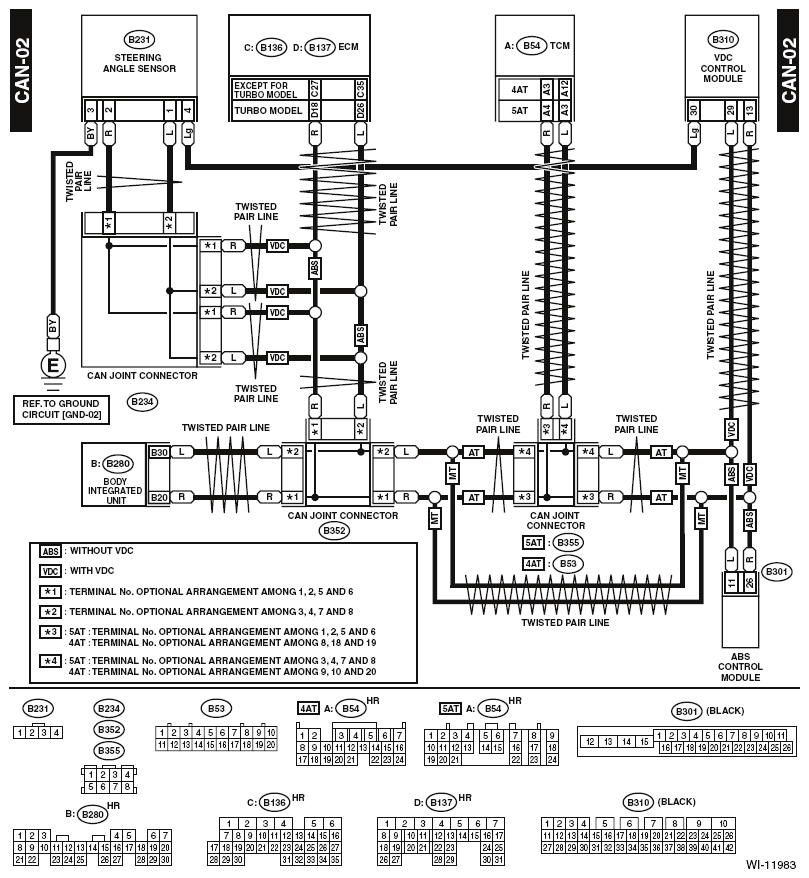

Fig 2: CAN Communication System Wiring Diagram (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
