Subaru
>>
2006
>>
Legacy GT spec.B
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams & Fuse/Relay Locations
>>
Audio System
>>
Wiring Diagram
Audio System: Wiring Diagram

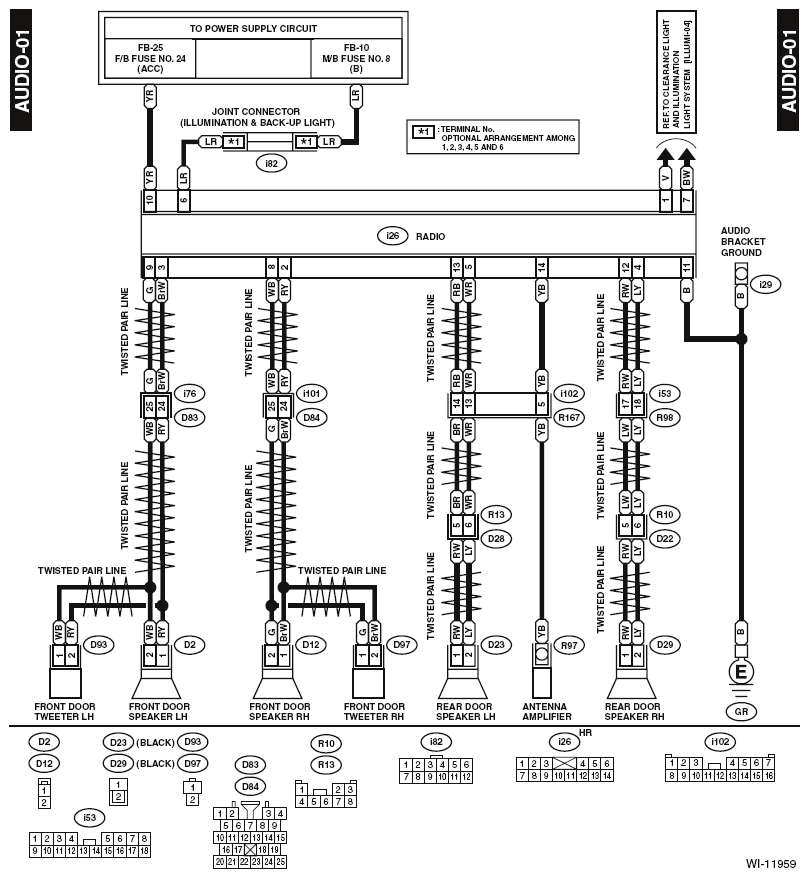

Fig 1: Audio System Wiring Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

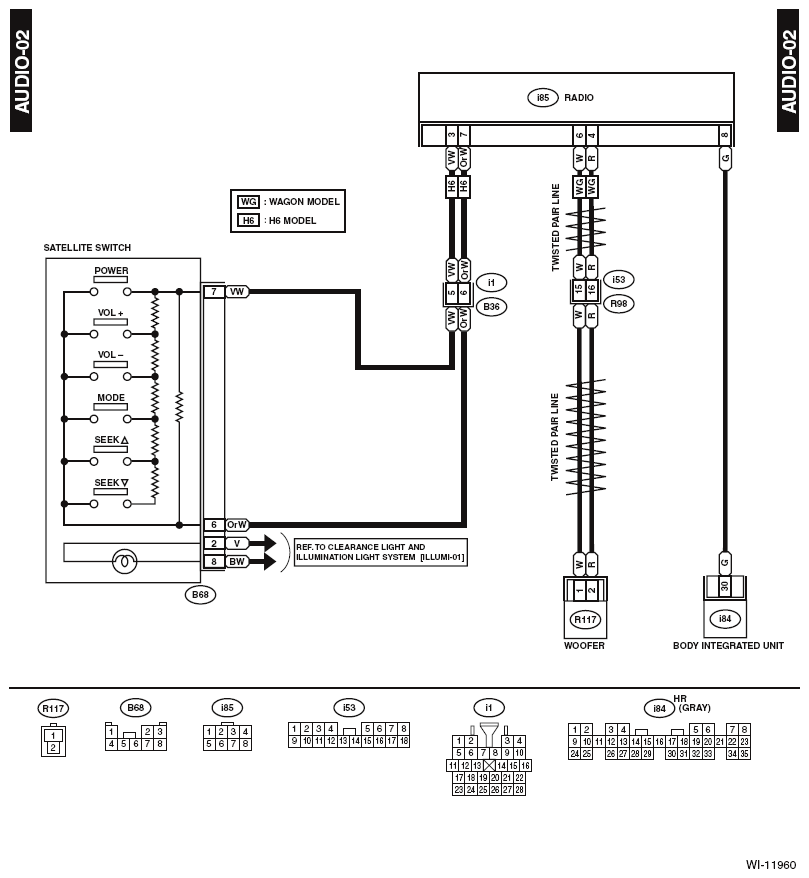

Fig 2: Audio System Wiring Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
