Manual A/C Model

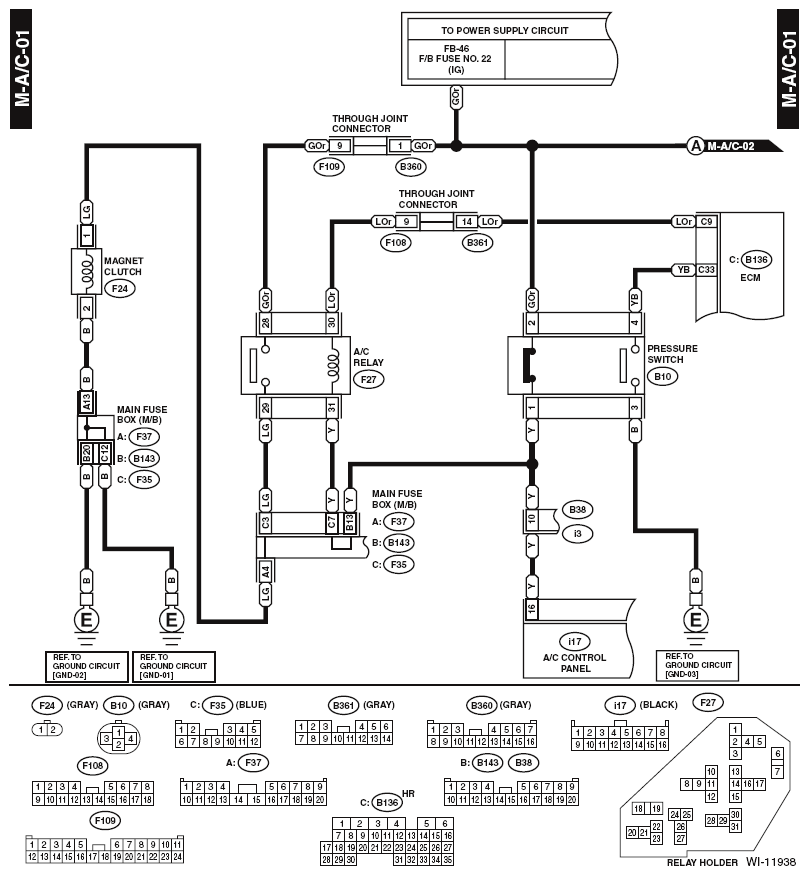

Fig 1: Air Conditioning System Wiring Diagram - Manual A/C Model (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Air Conditioning System Wiring Diagram - Manual A/C Model (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Air Conditioning System Wiring Diagram - Manual A/C Model (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
