Auto A/C Model

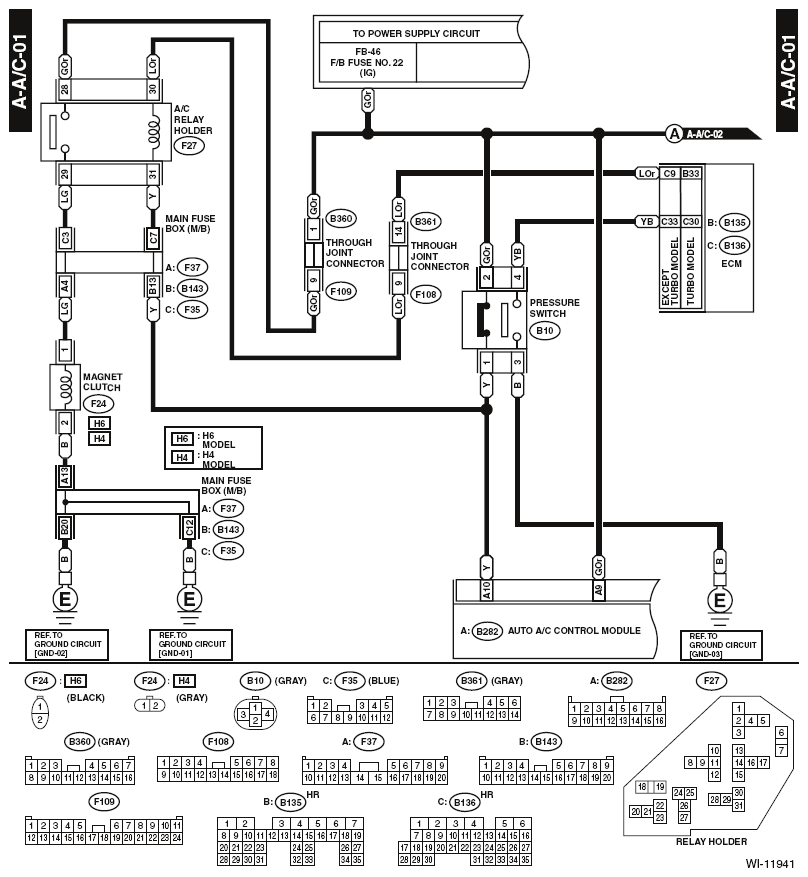

Fig 1: Air Conditioning System Wiring Diagram - Auto A/C Model (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

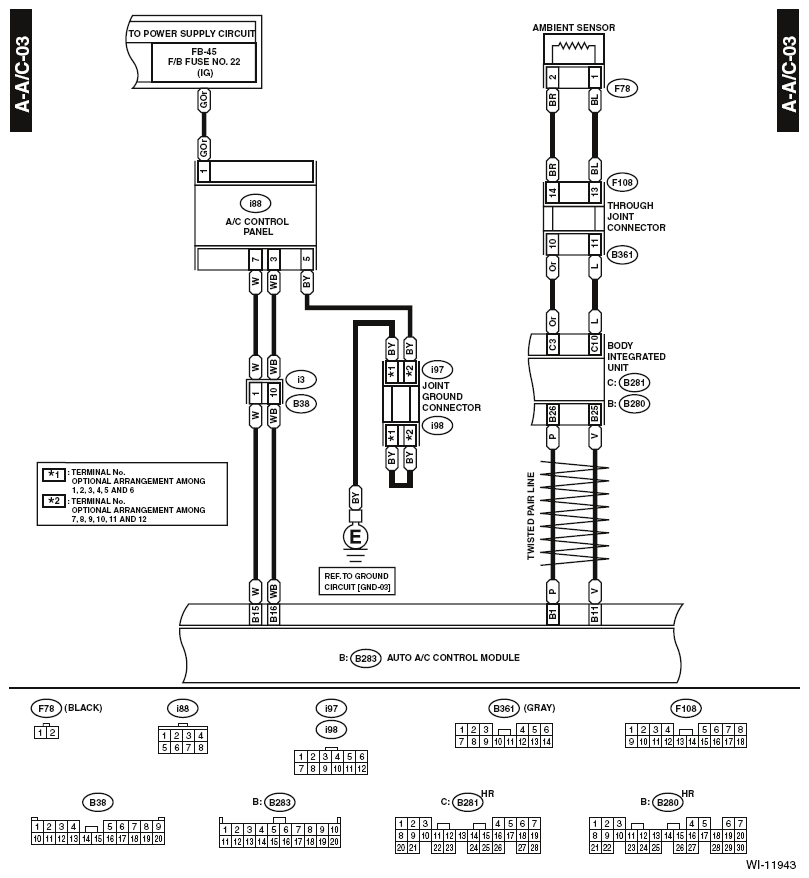

Fig 2: Air Conditioning System Wiring Diagram - Auto A/C Model (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

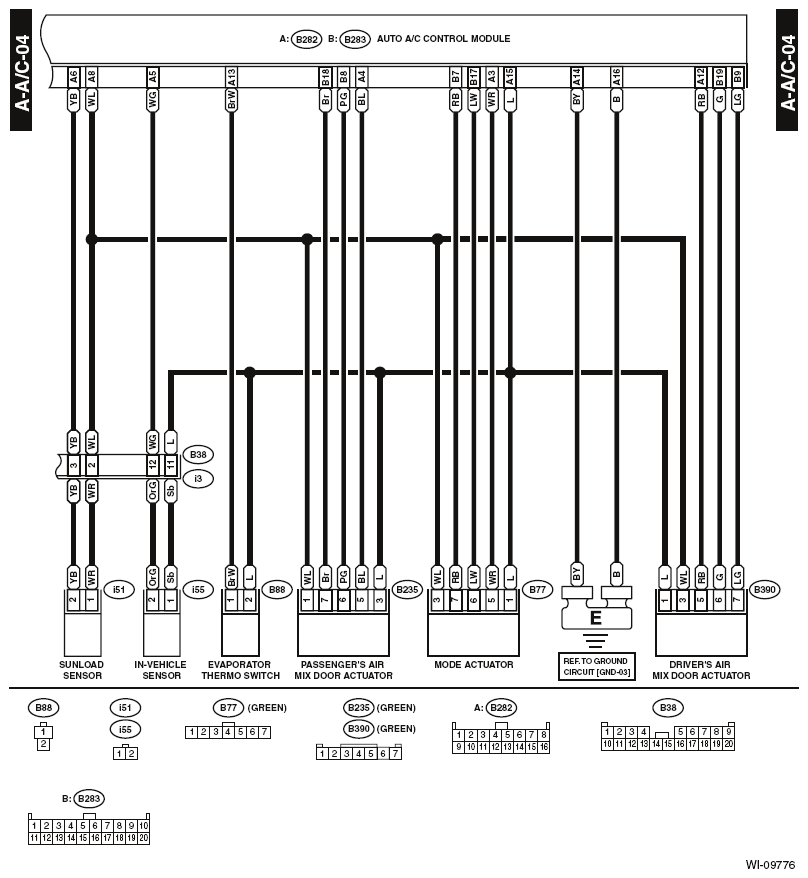

Fig 3: Air Conditioning System Wiring Diagram - Auto A/C Model (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

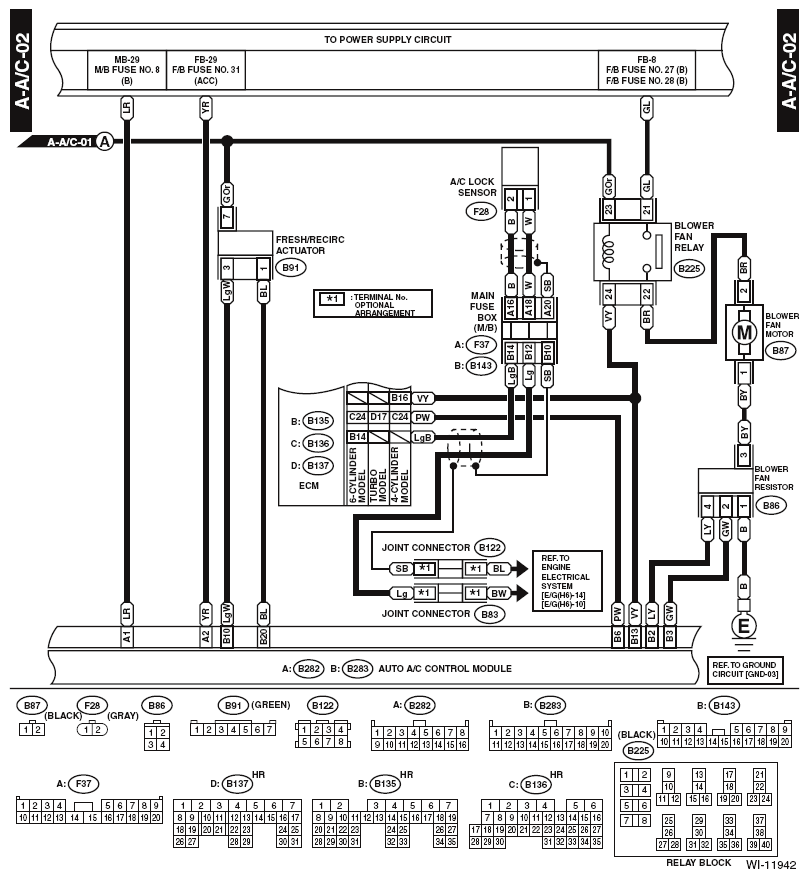

Fig 4: Air Conditioning System Wiring Diagram - Auto A/C Model (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
