Wiper Deicer System: Wiring Diagram

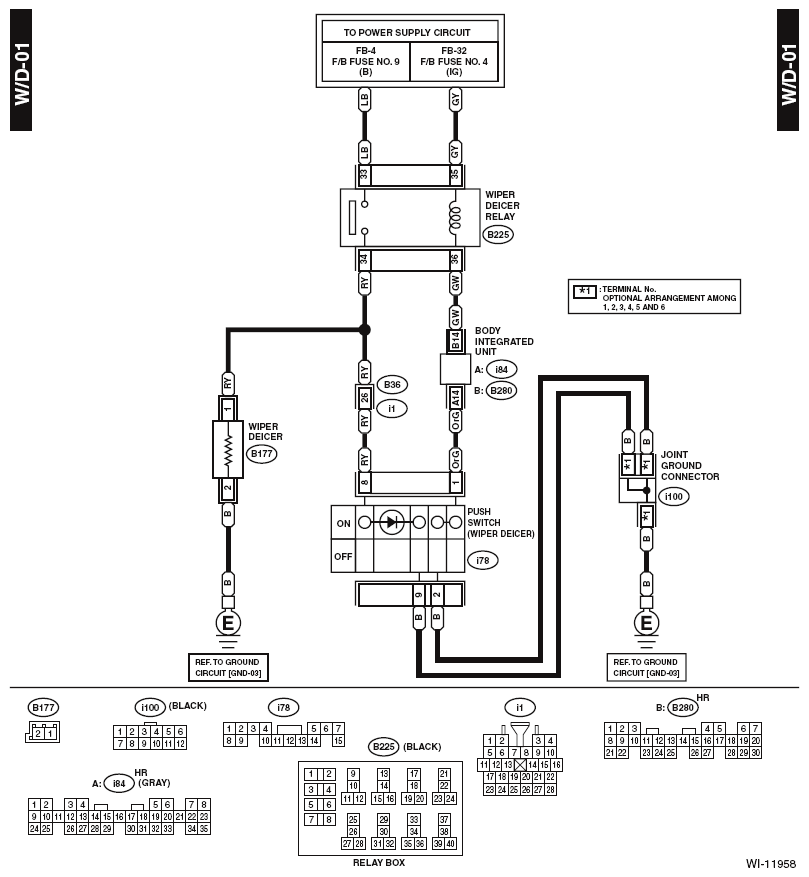

Fig 1: Wiper Deicer System Wiring Diagram

G11894564

Courtesy of SUBARU OF AMERICA, INC.
