Seat Heater System: Wiring Diagram

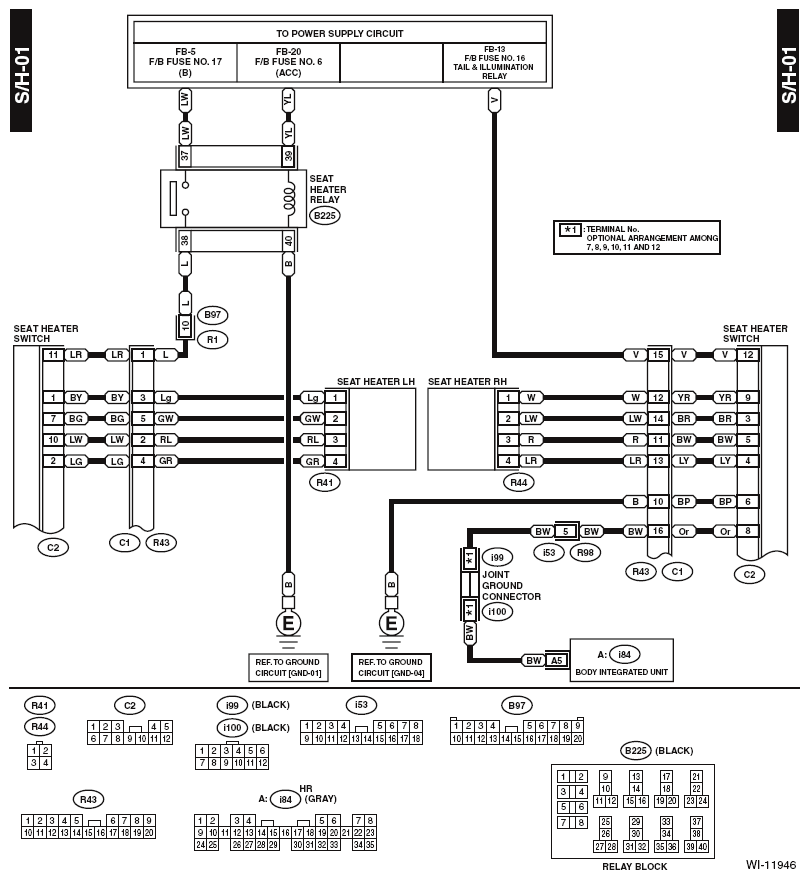

Fig 1: Seat Heater System Wiring Diagram

G11894544

Courtesy of SUBARU OF AMERICA, INC.
